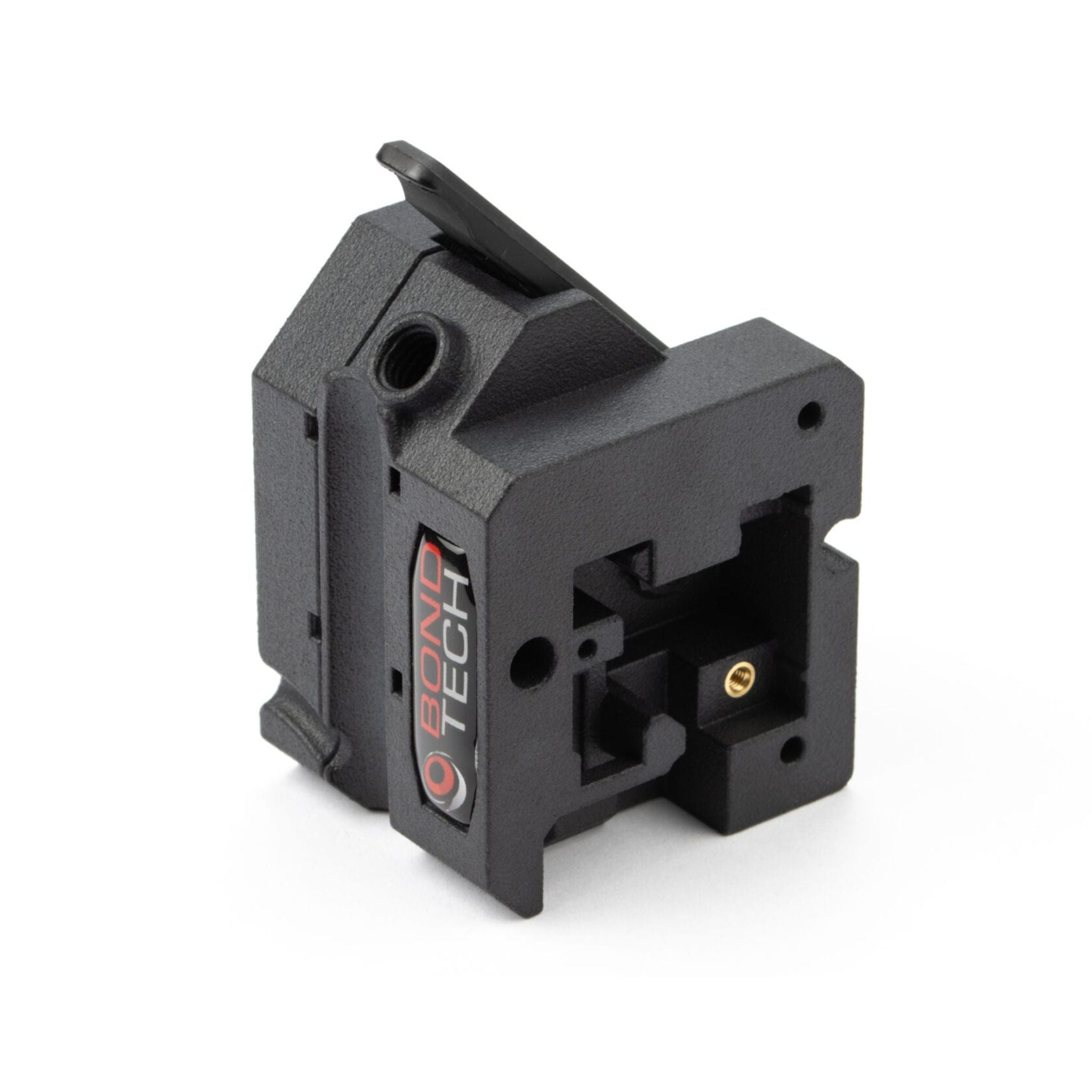

The Bondtech Internal Filament Sensor (IFS) Extruder for Prusa MINI/MINI+ is an evolution of Bondtech's previous high-resolution extruder for the Prusa MINI. With this new dual-drive extruder, the new filament sensor can now be mounted inside the extruder housing (although it may be used without the filament sensor if desired). Some core features of this extruder include:
Seamless integration with the Prusa MINI and Prusa MINI+
Built in housing for the Prusa filament sensor
Hardened drive gears for use with abrasive filaments that would wear out the stock feeder
Adjustable thumbscrew tensioner to allow the user to fine-tine the drive gear pressure depending on the type of filament used
Quick-release lever to allow for rapid material changes
Upgrading the Prusa MINI from the Stock Extruder to the Bondtech IFS Extruder
If you are installing the Bondtech IFS extruder and your Prusa still uses the stock extruder, use steps 1 through 15 of this guide to extract the extruder and reusable parts.
To correctly attach the motor gear to the stepper motor, please use the following video:
To correctly swap the 2 wires on the stepper motor cable, please use the following video:
Please Note: If you are using firmware 4.3.3, do not perform this step. Instead, use the parameter “Extruder Direction” to reverse the extruder direction instead. More information on this can be found here.
Upgrading the Prusa MINI from the Bondtech Extruder to the Bondtech IFS Extruder
Don’t forget to update the e-steps
If you are upgrading from the stock extruder to the new IFS extruder, you must update the e-steps value to 415.
When using firmware 4.3.3 or newer, update the e-steps value using the new Hardware Settings to customize the extruder. Check step 30 of Bondtech's old setup guide for more guidance.
When using previous versions, check steps 39-41 of the step by step guide.
Kit Includes:
1x Bondtech IFS extruder for Prusa Mini
1x 10076-4 IFS Magnet Holder (PA12)
1x 10076-5 IFS Lever (PA12)
1x 15112 IFS Extruder Plug (HT-PLA)
3x Black nylon zip-ties
4x M3x35 black oxide steel screws
1x M3x12 black oxide steel screw
1x Brass motor gear
1x Thumb Screw assembly
Kit Does Not Include:
Prusa Filament Sensor
Filament Sensor Magnets
Filament Sensor Steel Sphere
Other Specifications:
Net weight : 114g
Gearing ratio : 3:1
E-steps value : 415
Extruder Housing: SLS Printed parts in PA12;
Hinge: injection molded.
Community Sourced Design
The original Bondtech extruder design for the Prusa MINI was proposed to Bondtech by Olof Ogland. This new IFS version was developed by Vecko Kojchevski on top of Olof’s work. It’s based on the thoroughly tested BMG (Bondtech Mini Geared) Extruder and has been redesigned to fit the Prusa MINI Printer.
