Raise3D E2 Upgrade Kit

6 Reviews
| 11 answered questions
Regular price
$300.00
Sale price
$300.00
Unit price
per

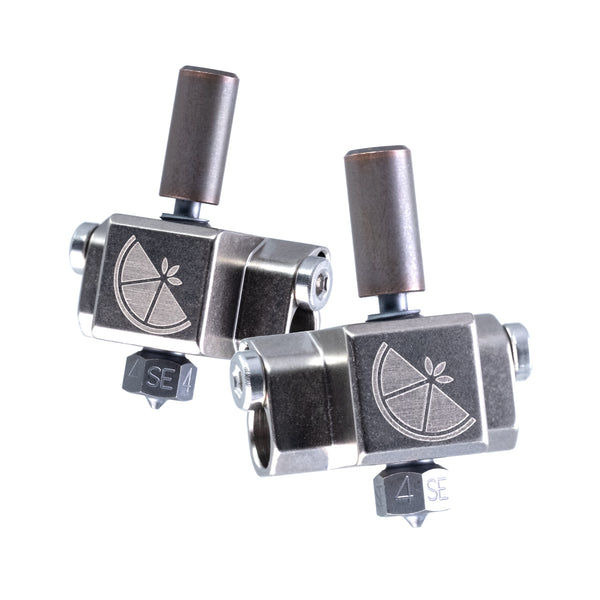

The Raise3D E2 Upgrade Kit is an all-in-one, hotend upgrade solution for the Raise3D E2 printer. This plug-and-play kit eliminates heat creep, prevents clogging, and reduces print time with the Copperhead® Hot Block and Bimetallic Heat Break™. Additionally, the bundle includes Custom Industrial Heaters designed specifically for integration with Raise3D E2 machines.

5 in Stock

+

Frequently bought with:

Plug-and-Play Design
The Raise3D E2 Upgrade Kit is a drop-in, plug-and-play replacement for the stock Raise 3D E2 hotends. Utilizing the stock heat sink makes installation a breeze, allowing you to reap the benefits of the Copperhead hotend with minimal printer downtime. The bundle also includes GammaMaster® Nozzles for abrasion-resistant printing.

Bimetallic Heat Break™
Copperhead Bimetallic Heat Breaks are 60% more efficient at heat creep reduction than monolithic designs. Using the same high-strength copper alloy designed for optimal thermal conductivity found in Mosquito Heat Breaks, Copperhead Heat Breaks boast a higher temperature rating and flow rate potential over PTFE-lined heat breaks.

Super-Conductive Hot Block
The Copperhead Hot Block is named for its hardened, nickel-plated, copper alloy construction. Rated to 450°C, Copperhead enables printing of nearly every commercially available filament, from basic PLAs to medical-grade PAEKs. The hot block design isolates the sensor from the heater with a physical air gap, improving the temperature feedback loop, and features convenient wrench flats to simplify nozzle changes.

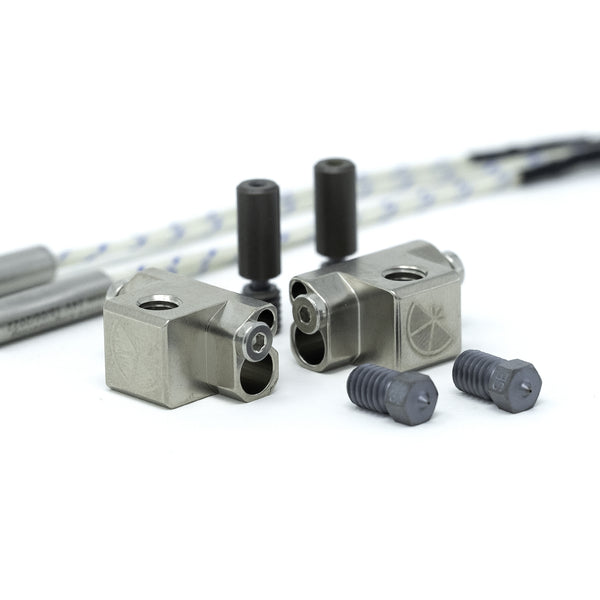

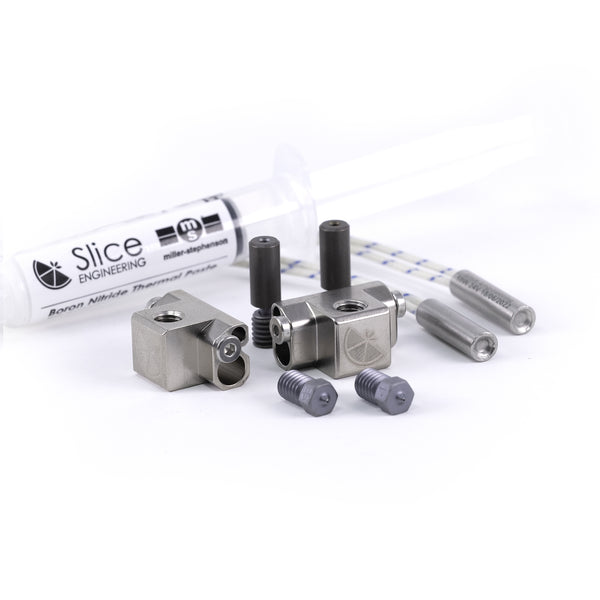

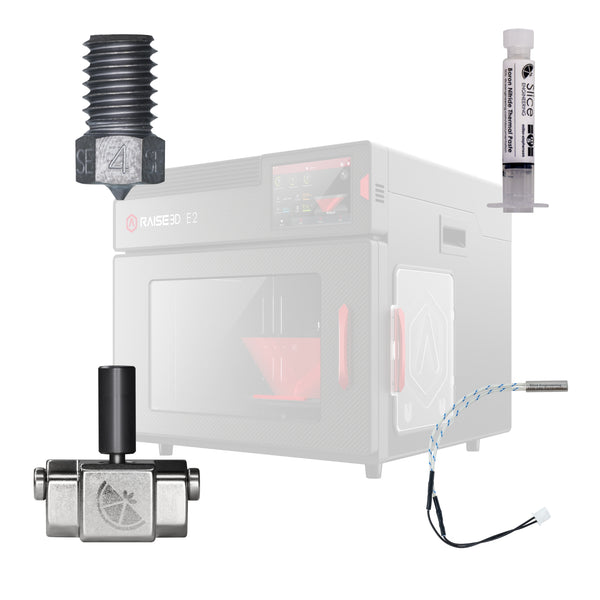

Raise3D E2 Upgrade Kit Includes:

  • Copperhead Hot Block (x2)
  • Copperhead Heat Break - Standard - G2 (x2)
  • GammaMaster Nozzle - 0.4 mm (x2)

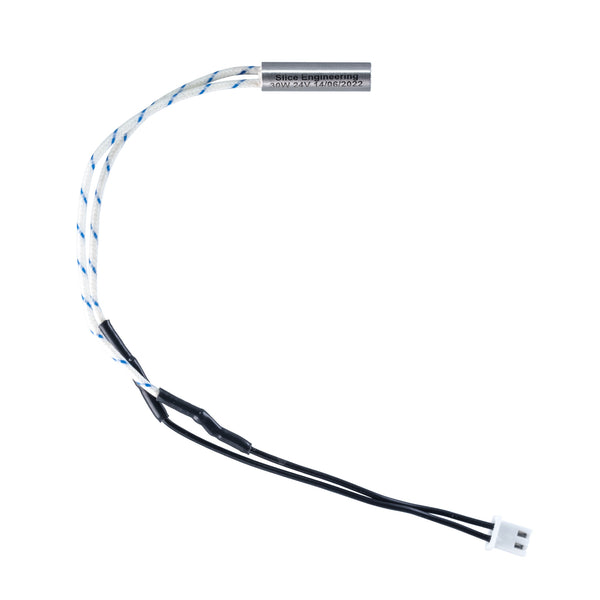

  • Custom Industrial Heater - 30W 24V | 170 mm | JST XHP-2 (x2)
  • Boron Nitride Paste - 1 cc
  • Gourmet Orange Creamsicle Lollipop
  • Slice Engineering Sticker

Compatible With:

  • Raise3D E2
  • Raise3D E2CF
Section
Drop element here

Technical Specifications

Cooling Air
Filament Diameter 1.75 mm
Temperature Rating 450°C*
Maximum Flow Rate Capacity 33 mm3/s
Nozzle Compatibility M6 x 1.0 (7 mm thread length)
Heating Power 30 W (24 V)
Temperature Sensor Stock Raise3D Thermocouple (Not Included)
Manufacturing Made in the USA

* Temperature Limitations: Although the Copperhead is rated up to 450°C, the Raise3D E2 printer is limited to 300°C by its firmware. Unfortunately, there is no workaround to this at this time.
