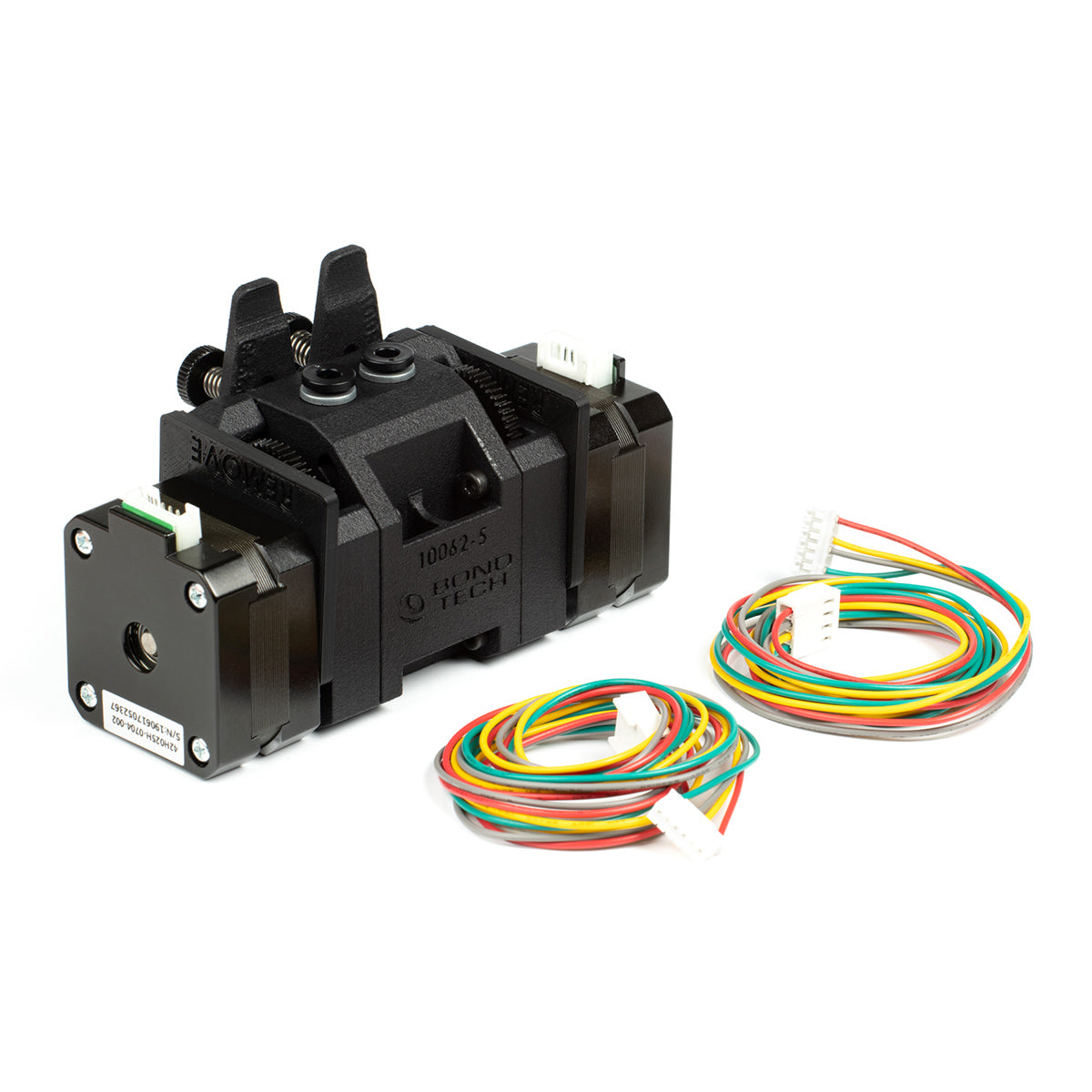

The Bondtech BMG-X2-M is the best and lightest performing extruder on the market that combines low weight with dual high feeding capacity.
Dedicated For Mosquito® Hotends

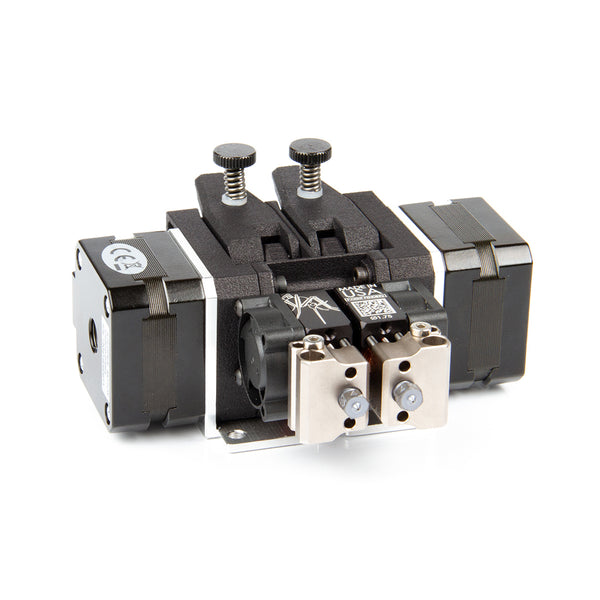

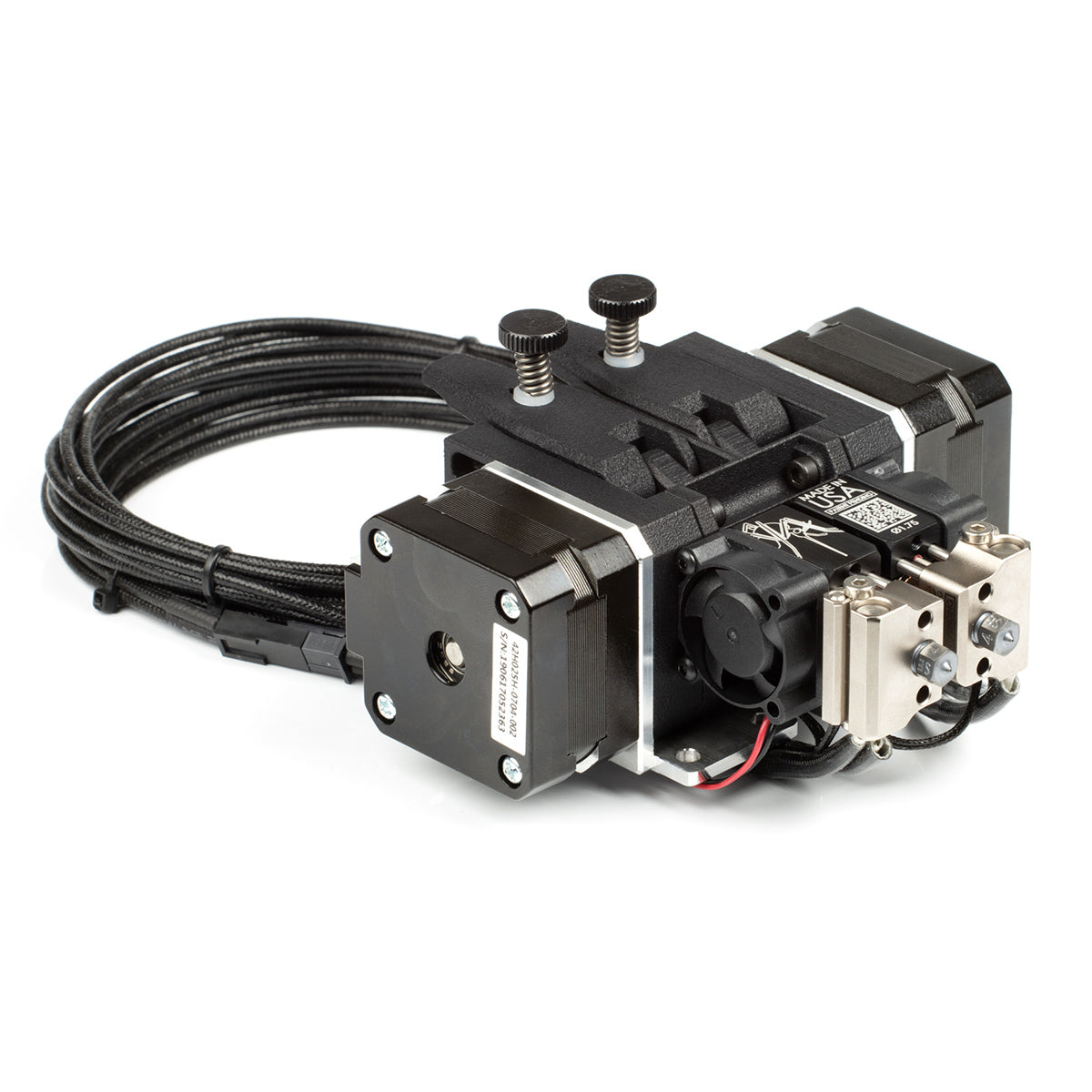

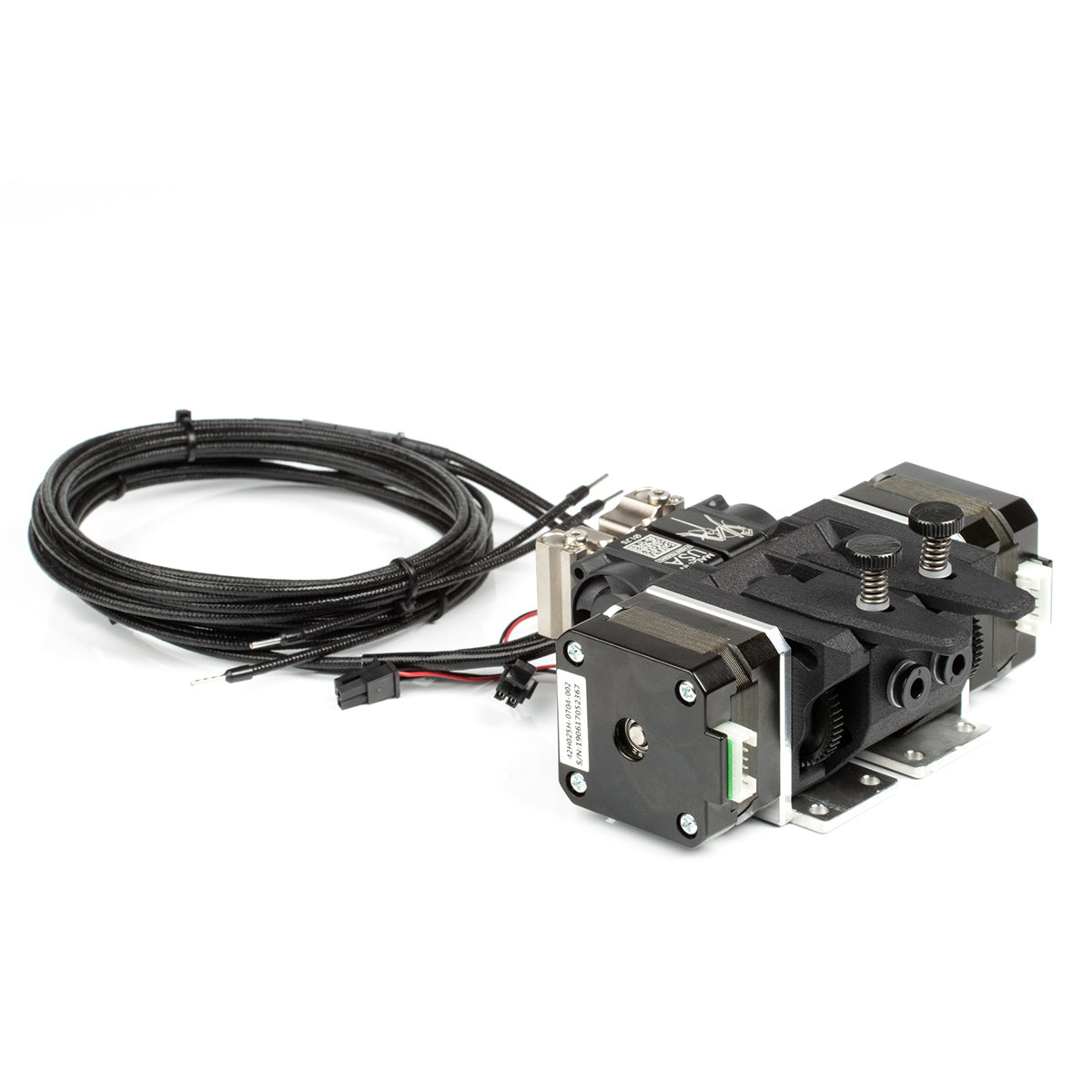

The Bondtech BMG-X2-M extruder is dedicated to be used with the The Mosquito® Hotend, Mosquito® Magnum Hotend, and the Mosquito® Magnum+ Hotend. This extruder has a C-C distance of 15mm. Also, this extruder is available in a single version.
SLS 3D Printed Housing in PA
The housing parts are professionally SLS printed in nylon for maximum strength and precision.
For 1.75mm Filaments only
The Bondtech BMG-X2-M is based on Bondtech's proven BMG design that utilizes an internal gearing ratio of 3:1 together with precision cnc-machined hardened steel drive gears to give you a compact powerhouse for all your multi-extrusion applications. Whether you require high-resolution prints with small nozzles or high-flow prints with big nozzles, the optimized gearing ratio, combined with Bondtech's industry-leading drive gears, provides unparalleled pushing power and lightning fast retractions in a lightweight and compact dual extrusion package.
The following parts are NOT included in this product: Alu Mounts, Hotends, Heaters, Thermistors, and their Cables.
To use this Bondtech Extruder, you may also need to buy the following:
- The Mosquito® Hotend or Mosquito® Magnum Hotend for higher material flow
- Boron Nitride Paste
- Thermistor: High Temperature
- 50W Heater Cartridge
- Nozzle Torque Wrench™: 1.5 Nm
Included Stepper Motors

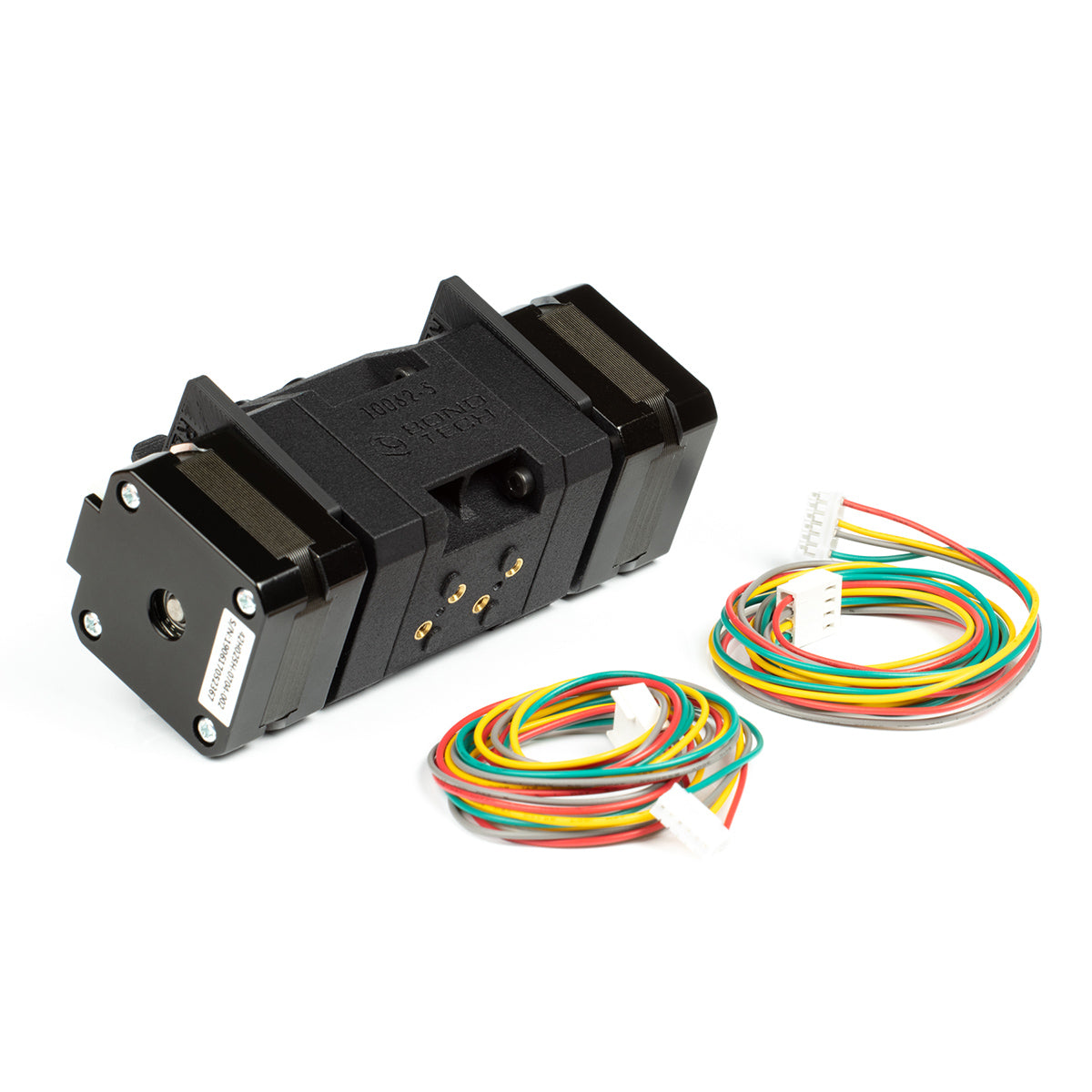

The included high power Nema17 pancake motors provide high torque while being a low weight. The NEMA17 Pancake Stepper Motors 25 mm are the recommended stepper motors to use with this extruder.
Bondtech's unique Dual-Drive technology delivers uninterrupted material flow without fear of grinding or slipping in even the most demanding conditions. Bondtech users all over the world will attest that even in prints with thousands of retractions, Bondtech's extruders perform flawlessly, with unmatched precision, and zero damage or degradation to the filament.
Bondtech's new BMG extruder feeds all material with high reliability, from slippery nylons and soft TPU/TPE filaments to highly rigid and sometimes brittle carbon-filled high-strength materials. The extruder is designed for 1.75 mm filaments, but has been tested to ensure performance of filament from 1.5 mm up to 2.0 mm allowing for high reliability regardless of the tolerance of the filament used. The filament path is fully guided throughout the extruder body and the housing maintains tight tolerances to the drive gears mitigating the chances of Filament misfeed when the hotend experiences increased backpressure or highly flexible filaments are used.

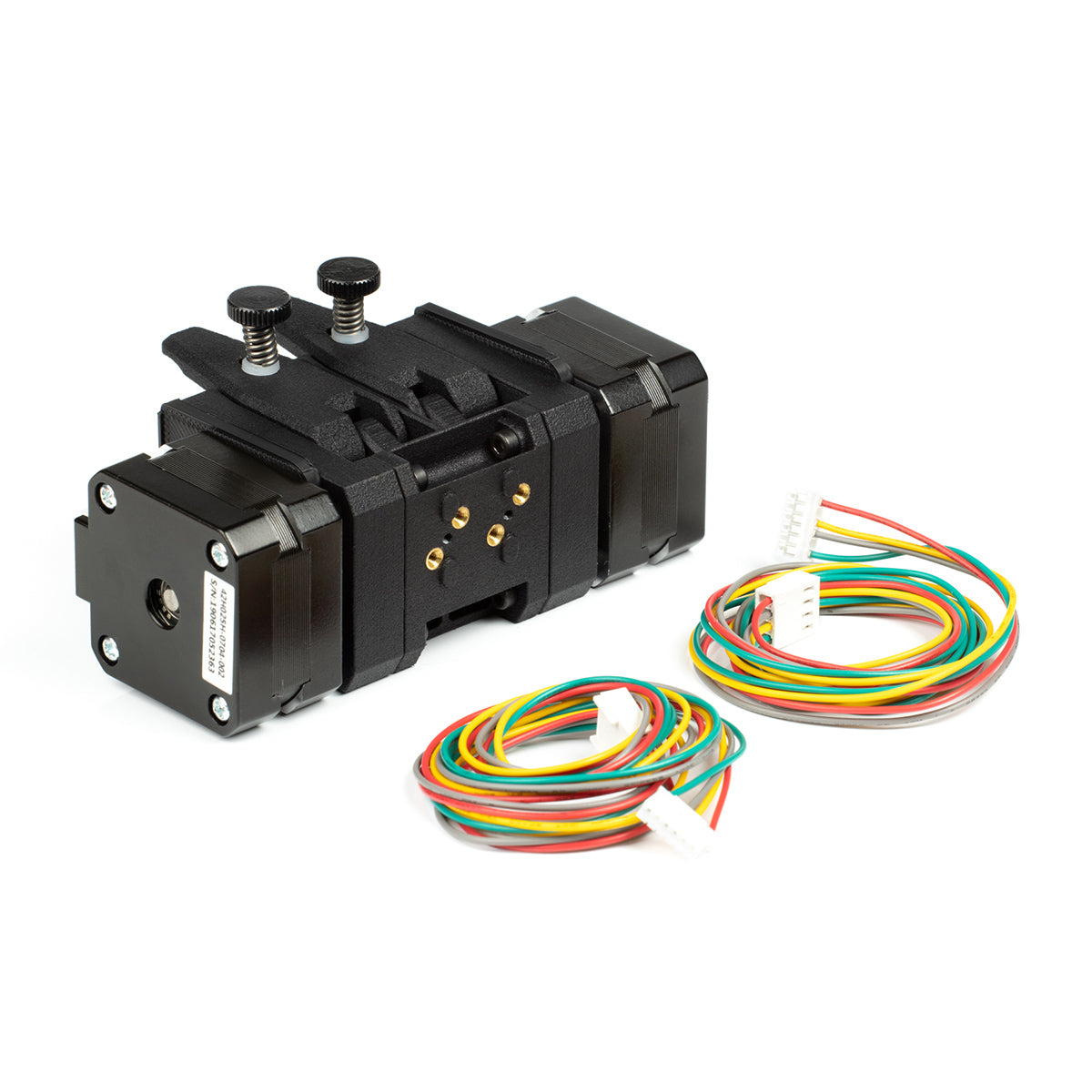

The thumbscrew tensioners allow the user to fine-tune the pressure exerted by the drive gears onto the filament. This gives you the power to adjust, according to your preferences, and to optimize for the type of material you are using.
To be able to do material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder. While keeping the lever-activated, insert the new material.
Flexible Mounting Options
This simple 3D printed bracket can be used to mount the extruder. The extruder is delivered without mounts.
Total weight when installed (including Alu Mounts, Mosquito® Hotends, Thermistors, Heaters, Cables, Nozzles): 660g
E-step value: 415
