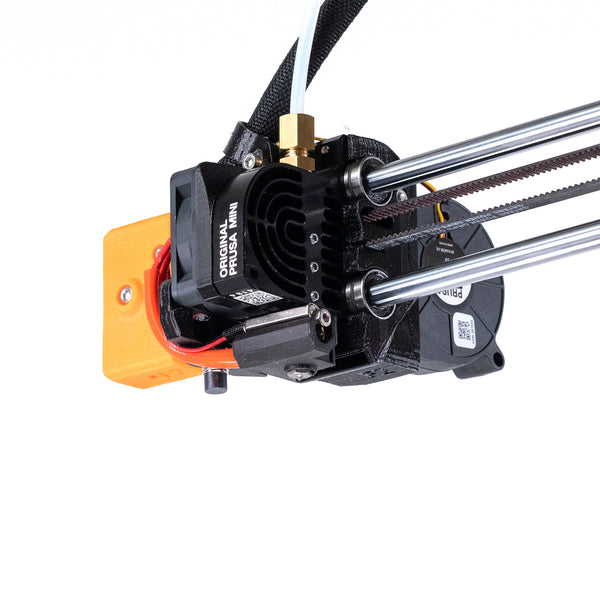

Prusa MINI Upgrade Kit - Installed

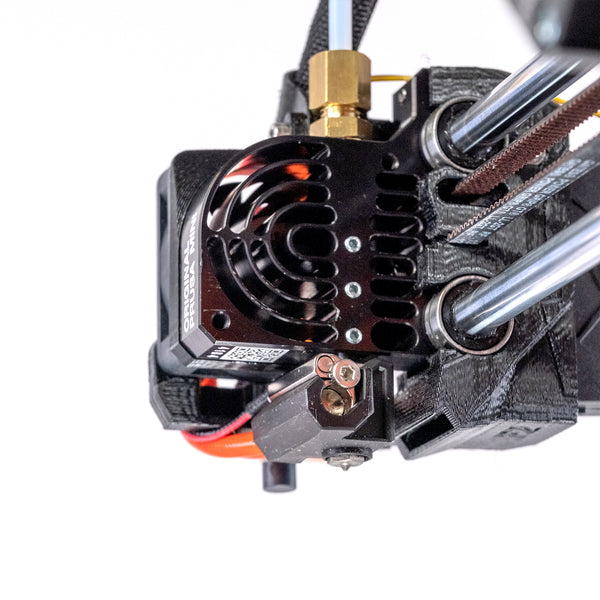

Prusa MINI Upgrade Kit - Installed
Prusa MINI Upgrade Kit
  • Load image into Gallery viewer, Prusa MINI Upgrade Kit
  • Load image into Gallery viewer, Prusa MINI Upgrade Kit
  • Load image into Gallery viewer, Prusa MINI Upgrade Kit
  • Load image into Gallery viewer, Prusa MINI Upgrade Kit - Installed
  • Load image into Gallery viewer, Prusa MINI Upgrade Kit - Installed
  • Load image into Gallery viewer, Prusa MINI Upgrade Kit

Prusa MINI Upgrade Kit

19 Reviews
| 4 answered questions
Regular price
$89.99
Sale price
$89.99
Unit price
per
The Prusa MINI Upgrade Kit is an all-in-one, hotend upgrade solution for Prusa MINI printers. This plug-and-play kit eliminates heat creep, prevents clogging, and reduces print time with the Copperhead® Hot Block and Bimetallic Heat Break™. The Prusa MINI Upgrade Kit even includes a GammaMaster® Nozzle and Copperhead Silicone Boot!

8 in Stock

+

Frequently bought with:

Prusa MINI Upgrade Kit Includes

  • Copperhead Hot Block
  • Copperhead Heat Break - P Mini
  • GammaMaster Nozzle - 0.4 mm
  • Copperhead Silicone Boot
  • Boron Nitride Paste - 1 cc
  • Capricorn Premium PTFE Tube - 30.8 mm
  • Optional IFS Extruder
  • Dowel Pin (for filling in extra space in the thermistor slot)
  • Gourmet Orange Creamsicle Lollipop
  • Slice Engineering Sticker

Compatible With:

  • Prusa MINI
  • Prusa MINI+
Section
Drop element here
Prusa Mini Upgrade Kit

Plug-and-Play Design

The Prusa MINI Upgrade Kit is a drop-in, plug-and-play replacement for the stock Prusa MINI Hotend. Utilizing the stock heat sink, heater, and sensor makes installation a breeze, allowing you to reap the benefits of the Copperhead Hotend with minimal printer downtime.

Prusa Mini Heat Break

Bimetallic Heat Break™

Copperhead Bimetallic Heat Breaks are 60% more efficient at heat creep reduction than monolithic designs. Using the same high-strength copper alloy designed for optimal thermal conductivity found in Mosquito Heat Breaks, Copperhead Heat Breaks boast a higher temperature rating and flow rate potential over PTFE-lined heat breaks.

Prusa Mini Upgrade Kit Hot Block

Super-Conductive Hot Block

The Copperhead Hot Block is named for its hardened, nickel-plated, copper alloy construction. Rated to 450°C, Copperhead enables printing of nearly every commercially available filament, from basic PLAs to medical-grade PAEKs. The hot block design isolates the sensor from the heater with a physical air gap, improving the temperature feedback loop, and features convenient wrench flats to simplify nozzle changes.

Prusa Mini Upgrade Kit IFS Extruder

Optional Extruder Upgrade

The Bondtech Internal Filament Sensor (IFS) Extruder for Prusa MINI/MINI+ IDGA is a cutting-edge evolution of Bondtech's high-resolution extruder. Designed for seamless integration with the Prusa MINI and MINI+, it features a built-in housing for the Prusa filament sensor, hardened drive gears for abrasive filaments, an adjustable thumbscrew tensioner for precise drive gear pressure, and a quick-release lever for efficient material changes. This updated extruder also comes with a new white plastic main gear & integrated drive gear for lower run-out and improved 3D print surface quality.

Installation Video

Technical Specifications

Cooling Air
Filament Diameter 1.75 mm
Temperature Rating 450°C
Maximum Flow Rate Capacity 33 mm3/s
Nozzle Compatibility M6 x 1.0 (7 mm thread length)
Maximum Heating Power 50 W 24 V (Not Included)
Temperature Sensor Compatibility 15 mm length, ø 3 mm (Not Included)
Number of Temperature Sensors 1
Manufacturing Made in the USA
