Modix Upgrade Kit

1 Review
| Ask a question
Regular price
$674.99
Sale price
$674.99
Unit price
per

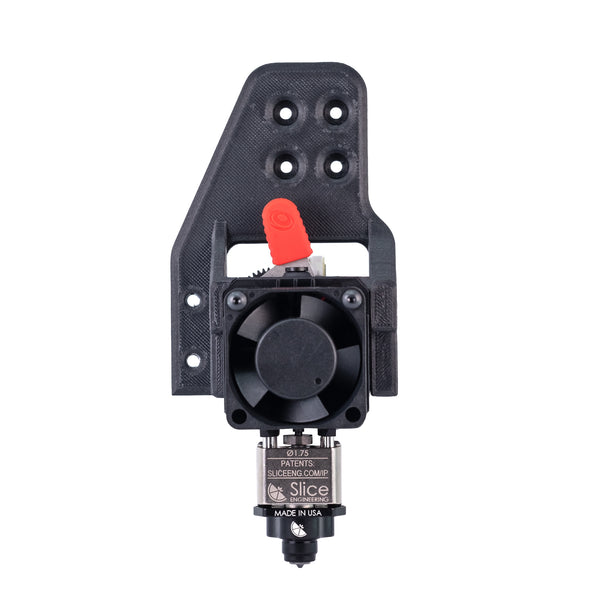

Kick your Modix Large Format 3D Printer into high gear with the Modix Upgrade Kit, powered by Mosquito Magnum+®. This high-powered, engineering-grade printhead increases production output and print resolution while reducing downtime and filament waste.

Note: Lead times should be expected. Orders will be assembled and fulfilled in the order in which they are received.

Made to Order. Get Yours Now

+

Powered by Magnum+: The Mosquito Magnum+ Hotend sports a long melt and two heater cartridge slots for 80W of heating power rated up to 500°C. This extended melt zone helps Magnum+ achieve a maximum flow rate capacity of 90 mm^3/s. Additionally, as with all Mosquito Hotends, the rigid design allows for One-Handed Nozzle Changes™.

Magnum+ has undergone testing and is trusted by prestigious organizations such as NASA, SpaceX, the U.S. Navy, and several major national labs. Learn more about Magnum+ and how it will revolutionize your 3D printing experience by checking out our white papers here.

Enhanced with ACE: With the LGX ACE Cold Block, the Modix Upgrade Kit features a short filament path from the extruder gears to the hotend, making it easier to print with flexible filaments or other complicated materials.

Built for Professionals: Utilizing the LGX Pro’s metal gears and robust extruder housing, the Modix 3D Printer Upgrade Kit excels in the higher-temperature printing environment of an enclosed Modix printer.

The Modix 3D Printer Upgrade Kit Includes:

Compatible Printers:

  • BIG-40 V3
  • BIG-60 V3
  • BIG-120X V3
  • BIG-120Z V3
  • BIG-180X V3
  • BIG-METER V3
Section
Drop element here

Technical Specifications

Cooling Air
Filament Diameter 1.75 mm
Temperature Rating 500°C
Maximum Flow Rate Capacity 90 mm3/s
Nozzle Compatibility M6 x 1.0 (7 mm thread length)
Maximum Heating Power 100 W (12 or 24 V)
Temperature Sensor Compatibility 15 mm length, ø 3 mm
Number of Temperature Sensors Up to 2
Manufacturing Made in the USA/Sweden
