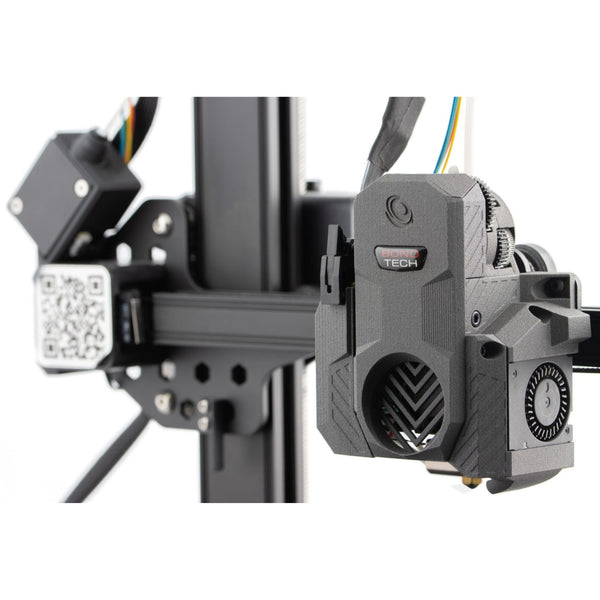

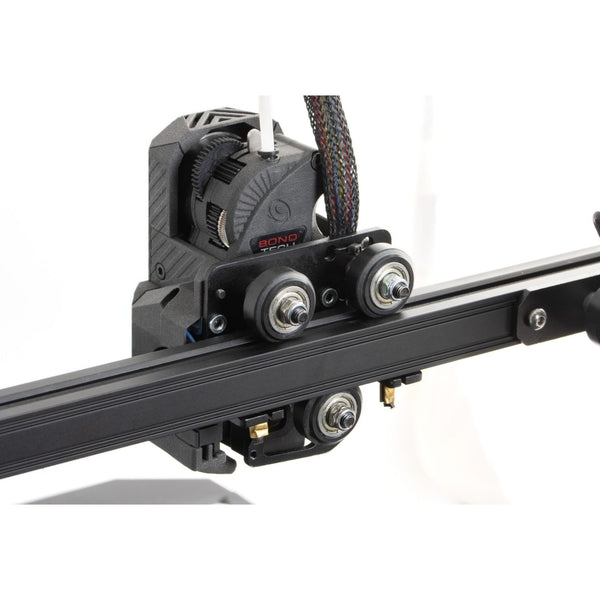

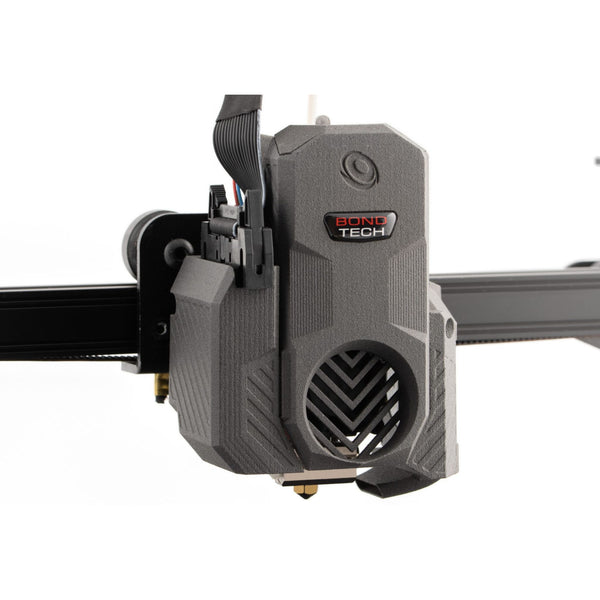

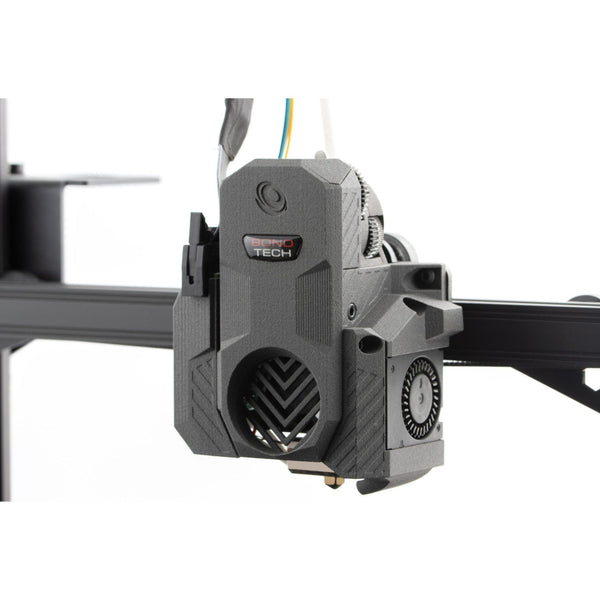

This upgrade kit is used to mount the LGX Lite Extruder onto the following printers:
- Creality CR-6 SE
- CR-6 Max
- CR-10 Smart
Main Features
- Converts the compatible printers from a bowden to a direct-drive setup
- Limits the extra load on the strain gauge to the LGX Lite itself
- Allows for strain gauge leveling since the housing is light and insulated from the extruder
- Compatible with all stock hotends and cooling fans
- Easy to remove for maintenance and service of the hotend and extruder
Please Note: The LGX Lite Extruder is not included and must be purchased separately to use this kit.
Additional Features
- Weight: 65 g
- E-steps : 562 @ 16 microsteps
- Klipper’s rotation_distance : 5.7
- Stepper motor current : 0.45 to 0.65 A max
- Material: Grey polyamide with no dyeing
- Fan Z-Position: Adjustable
- Coating: Wax protective coating
- Max operating temperature : 90°C
- Compatible Hotends (with the addition of an Arrow Hotend Upgrade Adapter Set):
- Copperhead® Screw Mount Hotend
- Mosquito® Hotend
- Mosquito® Magnum Hotend
- Mosquito® Magnum+ Hotend - Air
Product includes:

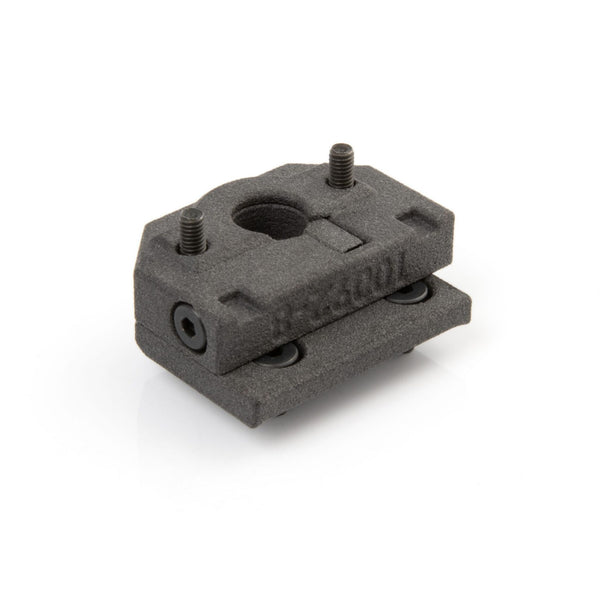

- 1x LGX Lite extruder mounting set
- 1x PA12 extruder mount
- 1x PA12 hotend mount
- 4x M3x6 button head screw
- 2x M3x10 button head screw
- 2x M3x8 button head screw
- 1x M3x30 screw
- 1x M3 square nut
- 1x Capricorn cutting fixture
- 1x 70mm Capricorn tube

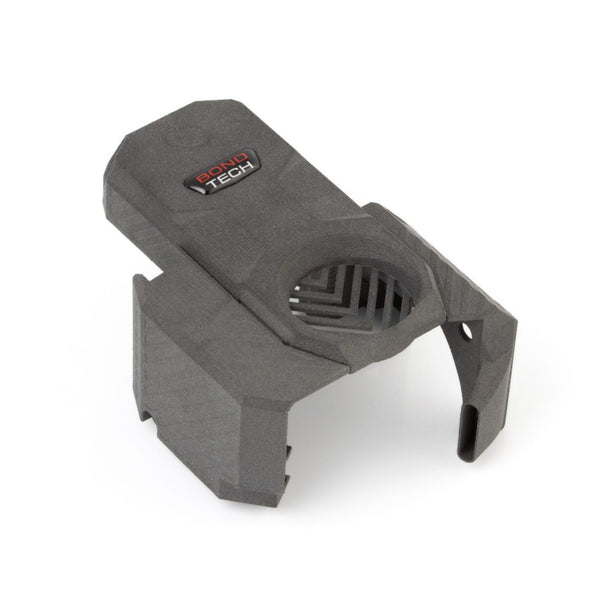

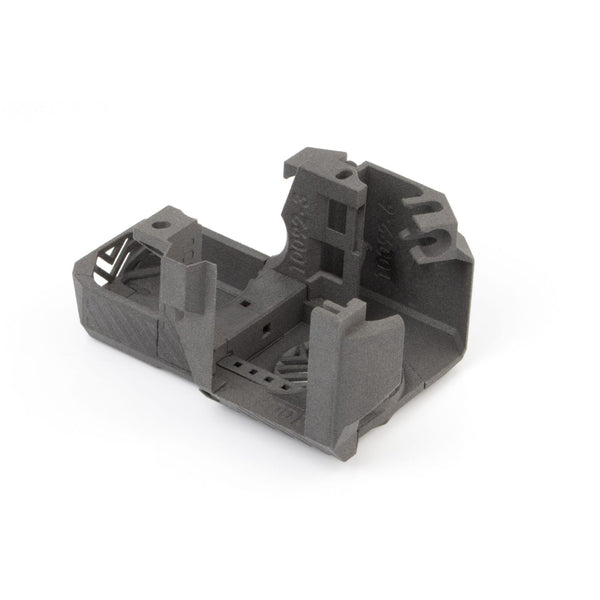

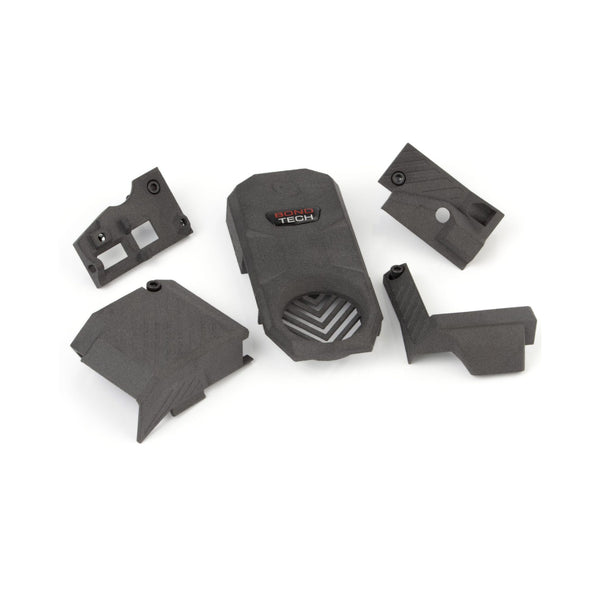

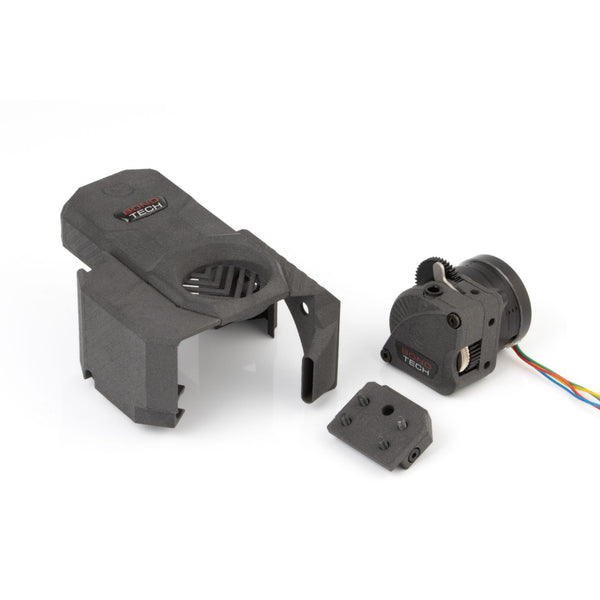

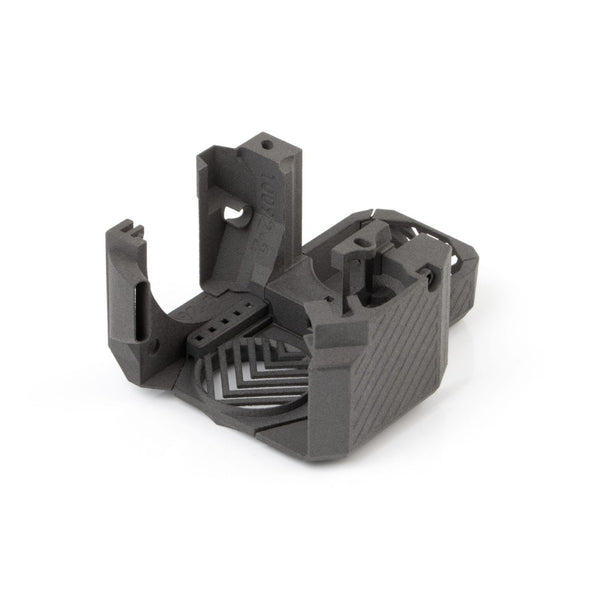

- 1x LGX Lite Arrow housing set

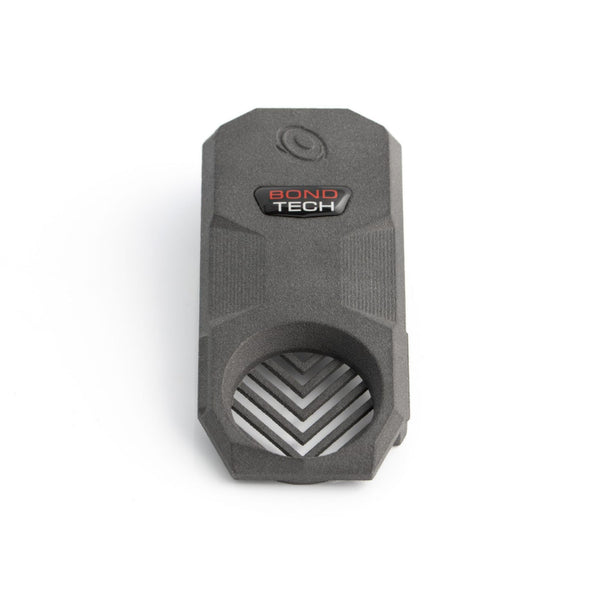

- 1x PA12 front housing
- 1x PA12 left wing
- 1x PA12 right wing
- 1x PA12 top lid
- 1x PA12 fan shroud
- 1x PA12 (breakout board/cables) cover
- 2x M3x8 button head screw
- 1x M3x16 screw
- 2x M3x20 MC6S screw
- 3x M3 square nut
- 1x Powered by Bondtech sticker
