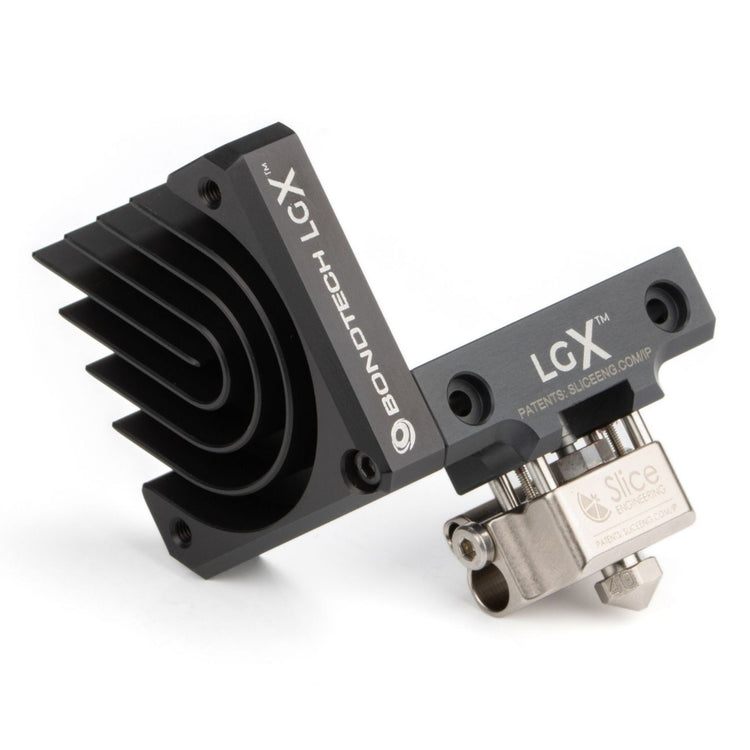

LGX Mosquito Shortcut Hotend

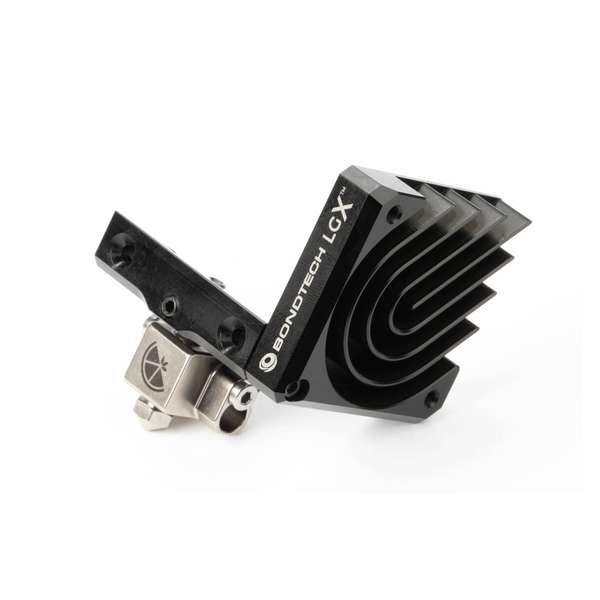

LGX Shortcut Copperhead Hotend side view

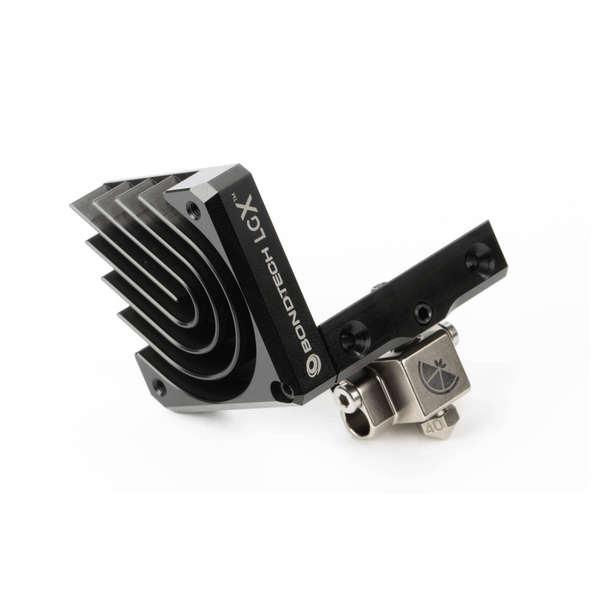

LGX Shortcut Copperhead Hotend

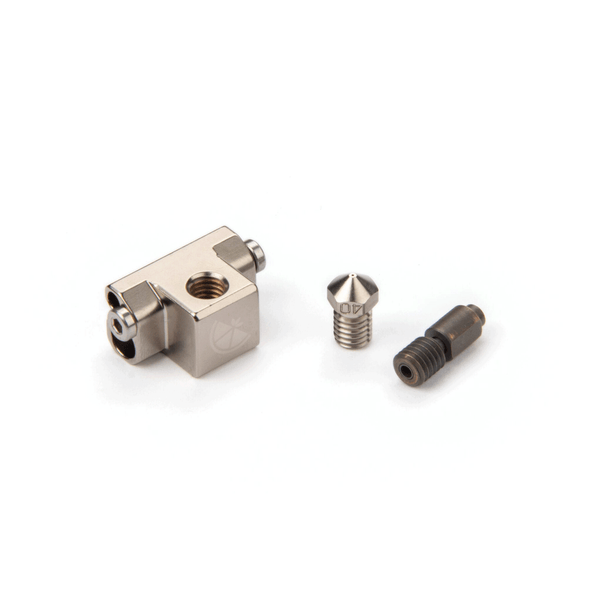

LGX Shortcut Copperhead Hotend hot block, heat break, and nozzle

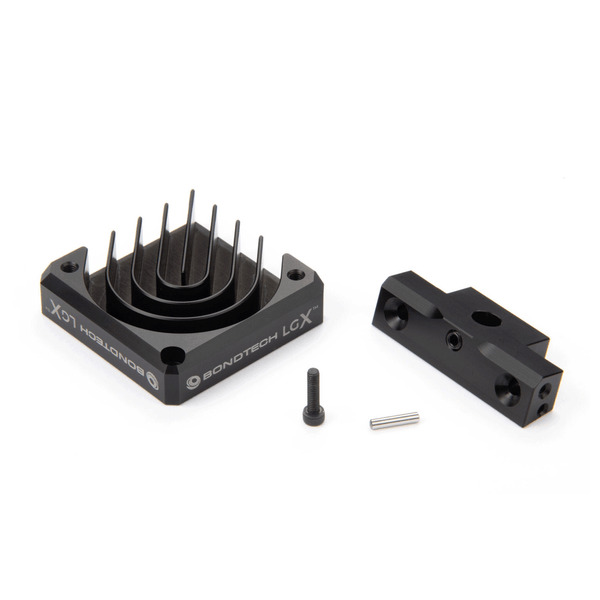

LGX Shortcut Copperhead Hotend cooler

Bondtech LGX Shortcut

Write a review
| Ask a question
Regular price
$149.00
Sale price
$149.00
Unit price
per

The LGX™ Shortcut is a special hotend that mounts to the side of the LGX™ eXtruder. With the LGX™, it forms a printhead that will excel at printing ALL most common materials and especially the soft and flexible. This add-on comes in two variants: Copperhead® and Mosquito®

Each LGX™ Shortcut Hotend is supplied with:

  • 1x LGX™ Black Anodized Aluminum Heat Sink
  • 1x LGX™ Black Anodized Aluminum Air Cooled Cold Block
  • 1x LGX™ Air-cooled Cold Block Mounting Hardware
  • 1x Mosquito® Heat Break and Hot Block Hardware OR Copperhead® LGX™ Heat Break
  • 1x Mosquito® OR Copperhead® Hot Block
  • 1x Bondtech M6x1x7.5 Coated Brass Nozzle 0.4mm
  • 1x Silver Based Thermal Paste Sachet 0.5g

Looking for the LGX Shortcut Printhead? Click here!

The LGX Shortcut only supports 1.75 mm filament.

Designed To Be Flexible

The Bondtech LGX™ Shortcut includes a reversible heat sink that can be installed on the left or right hand side of the cold block. The heat sink also includes a hole pattern for attaching 40×40 fans.

Cooling down the heat break

Bondtech's tests suggest a 4010 fan is enough to cool down the cold block and the cold zone of the heat break, even with such a small contact surface to the heat sink. In case you have an application where additional cooling is required, try using a 4020 fan or 2 LGX heat sinks, one on each side.

    Compatible nozzles

    The hot block included in this product is compatible with Rep Rap style nozzles, such as:

    The LGX™ Shortcut Hotend is not compatible with the following items:

    • 3DSolex Matchless 1.75mm nozzles.

    LGX Shortcut Mosquito Hotend

    Main Advantages

    • Robust hotend
    • One-handed nozzle change
    • Gives better access to softer materials
    • Enables printing flexible and softer materials faster
    • Keeps the print-head small and light
    • Allows for multiple mounting options

    Technical Specifications

    • Cold Block Material : Anodized Aluminum;
    • Heat Sink Material : Anodized Aluminum;
    • Mosquito Hot Block materials : steel tube; copper body; nickel plating.
    • Max operating (nozzle) temperature : 450°C
    • Max tightening torque on the extruder screws is 0.3 Nm
    • Max tightening torque on the heatsink/cold block screw is 0.6 Nm
    • LGX Shortcut Mosquito hotend net weight : 61 g
    • Package measurements : 80x103x73 mm
    • Package weight : 105 g

    LGX Shortcut Copperhead Hotend

    Main Advantages

    • Gives access to softer materials.
    • Enables printing flexible and soft materials faster.
    • Keeps the print-head small and light.
    • Allows mounting in many different ways.

    Technical Specification

    • Cold Block Material : Anodized Aluminum;
    • Heat Sink Material : Anodized Aluminum;
    • Copperhead Hot Block materials : steel tube; copper body; nickel plating.
    • Max operating (nozzle) temperature : 450°C
    • Max tightening torque on the extruder screws is 0.3 Nm
    • Max tightening torque on the heatsink/cold block screw is 0.6 Nm
    • LGX™ Shortcut Copperhead® net weight : 55.5 g g
    • Package measurements : 80x103x73 mm
    • Package weight : 96 g

    Video Guides

    01 – Preparing the LGX

    02 – Setting up the LGX Shortcut Copperhead – Assembling the print-head

    CREDITS
    Soundtrack is based on 2 Bensound cinematic tunes: Adventure; Memories. Check Bensound at https://www.bensound.com/

    STEP Files To Download

    Click the links below to download STEP files with simplified geometries of each available setup.


     LGX

    Note: To use the Direct Drive Interface Plugs with the Slice Engineering® Hotends, it is recommended to use a PTFE tube between the extruder and the heat break. Below is some useful additional information:

    PFTE Tube Lengths:

    • Old Mosquito/Mosquito Magnum : 10 mm
    • New Mosquito/Mosquito Magnum : 11 mm
    • Copperhead screw mount : 30 mm
    • PTFE tube should be cut straight on both ends
    • Slight chamfer inside is recommended, but not mandatory

    Replacement Parts

    Looking to replace your LGX Copperhead Heat Break, click here
