Mosquito® Liquid

Behold the Mosquito® Liquid - it uses the same patented technology found in the standard, air-cooled Mosquito® hotend, but optimized for liquid cooling in heated enclosures. Like all of our hotends, Mosquito® Liquid is completely Made in the USA, out of top end materials. The liquid cooling block is precision machined out of a super conductive copper alloy, and coated with a non-marring, highly inert, gold-colored plating that allows for use with any commercially available coolant. Liquid also features our latest Bimetallic Heat Break™ - the first version to be totally conductively cooled. The hotend is available with or without liquid fittings.

We can't quite talk about the specifics yet, but Mosquito® Liquid will be featured on several upcoming industrial 3D printers optimized for printing high temperature plastics such as PPSU, PEEK and PEKK.

Heat Break Diagram

Superior Heat Break Performance

Eliminate Heat Creep and reduce jamming

Improve printing resolution

Improve capability with high temp materials

Lower retraction improves printing speed

Rigid Structure

One-handed Nozzle Change™ allows for the simplest nozzle change procedure of any hotend

A “roll cage” design protects the delicate heat break from crashes and other abuse

Thermistor air gap detail

Copper Hot Block

Rated to 500 °C for even the most demanding tasks

Print every available filament, from basic PLAs to custom medical-grade PAEKs

Durable nickel-based coating reduces plastic buildup

Modular System

Designed like a Lego kit with interchangeable parts

Swap a few parts to upgrade to any of the other Mosquito™ hotends, including Magnum™

Ambidextrous design

Exploded Mosquito diagram

Adaptable

Four different direct mounting options, numerous machined adapters, innumerable adapter possibilities to mount to any 3D printer

Ideal for multi extrusion setups - mount two extruders back-to-back with a separation distance as small as 15 mm

Precise, torque-resistant mounting interface

Mosquito mounting hole layout
Top mounting solution
Bottom mounting solution
Side mounting solution

Lightweight

Low mass on the carriage for maximum X-Y acceleration

Mosquito front top view

I ENJOY THE EASE OF THE NOZZLE SWAP. EVERY TIME I GO TO SWAP A NOZZLE NOW I SAY TO MYSELF, "WISH THIS WAS A MOSQUITO."

CHRIS R, @CHRISRILEY3D

I TROUBLESHOOT PEOPLE’S EXTRUSION ISSUES ALL DAY, SO I’M VERY HAPPY TO COME HOME TO A HOTEND THAT JUST WORKS. NO MATTER WHAT I THROW AT IT, EVEN THE EXPERIMENTAL STUFF WE PLAY WITH AS A FILAMENT MANUFACTURER… IT HANDLES BEAUTIFULLY. I’M VERY HAPPY WITH THE MOSQUITO AND CAN’T RECOMMEND IT ENOUGH!

KEITH K, @TINKERZ FROM PROTOPASTA

I LOVE HOW THE MOSQUITO HOTEND IS ENGINEERED. I CAN HAVE MY RETRACTION SETTINGS DIALED IN REALLY PRECISE.

MARTEINN S, @3DPICELAND

AFTER USING MY FIRST MOSQUITO THESE PAST FEW MONTHS I CAN'T IMAGINE USING ANY OTHER HOTEND.

John k.

I RECOMMEND YOUR PRODUCT TO ANYONE WHO IS SERIOUS ABOUT 3D PRINTING, WHETHER THE HOBBYIST OR THE PROFESSIONAL. I PUT THE MOSQUITO TO THE TEST AND WAS IMMEDIATELY PRINTING REMARKABLE QUALITY PARTS: THE NYLON-X PART PRINTED USING YOUR HOTEND TURNED OUT BETTER QUALITY THAN THE SAME PART PRINTED WITH SLA. THANK YOU FOR SUCH A FANTASTIC PRODUCT!

RUPERT M.

LOVING THIS HOTEND AND WILL BE BUYING MORE AS I SLOWLY UPGRADE MY PRINTERS. I AM A FAN OF QUALITY PRODUCTS AND THIS PRODUCT I AM A HUGE FAN OF. RECOMMENDING A LOT OF RAILCORE OWNERS TO USE THE MOSQUITO AS I AM TRULY IMPRESSED WITH IT.

BRIAN P.

Technical Specifications

Mosquito draft graphic
Mosquito top front right
Mosquito mounting hole layout
Mosquito top back left
Mosquito top front right
Mosquito mounting hole layout
Mosquito top back left

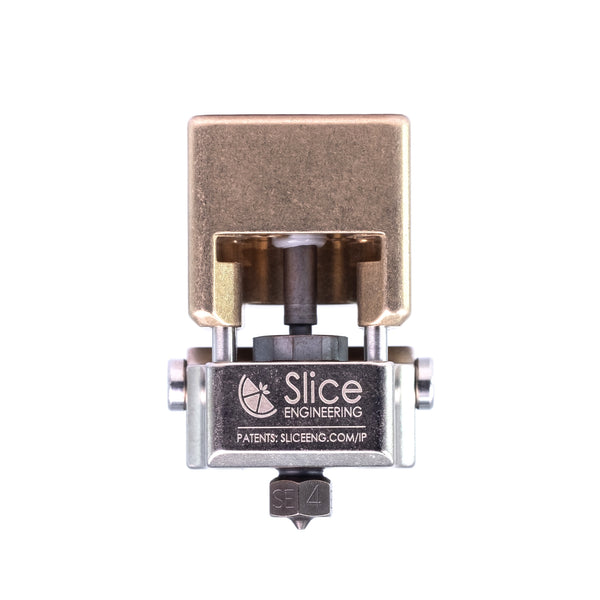

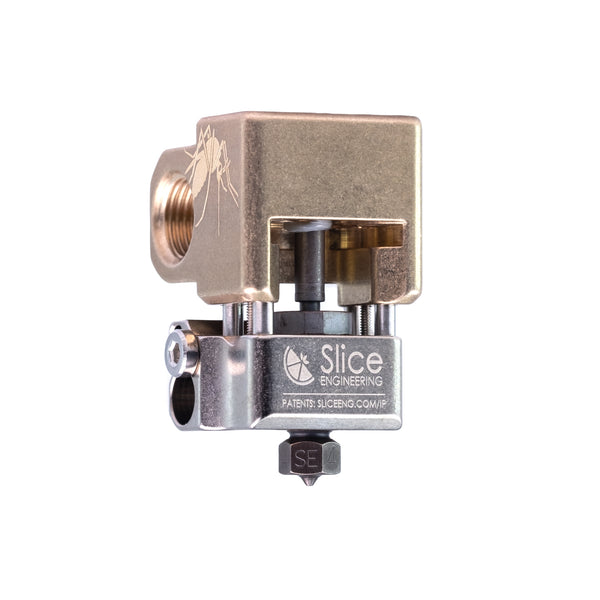

Mosquito® Liquid (No Eisele Fittings)

$185.96

Includes:
- Mosquito® Base Liquid - Compact (x1)
- Hot Block Hardware (x1)
- Mosquito® Heat Break - Conduction (x1)
- Mosquito® Hot Block (x1)


Notes:
- Comes Fully Assembled
- Lead times should be expected. Orders will be assembled and fulfilled in the order in which they are received.

ADD TO CART

Mosquito® Liquid (6 mm OD Eisele Fittings)

$215.96

Includes:
- Mosquito® Base Liquid - Compact (x1)
- Hot Block Hardware (x1)
- Mosquito® Heat Break - Conduction (x1)
- Mosquito® Hot Block (x1)
- Eisele Elbow Fittings - 6 mm OD (2 PCS) (x1)

Notes:
- Hotend comes fully assembled, fittings bagged separately
- Lead times should be expected. Orders will be assembled and fulfilled in the order in which they are received.

ADD TO CART

Mosquito® Liquid (8 mm OD Eisele Fittings)

$215.96

Includes:
- Mosquito® Base Liquid - Compact (x1)
- Hot Block Hardware (x1)
- Mosquito® Heat Break - Conduction (x1)
- Mosquito® Hot Block (x1)
- Eisele Elbow Fittings - 8 mm OD (2 PCS) (x1)

Notes:
- Hotend comes fully assembled, fittings bagged separately
- Lead times should be expected. Orders will be assembled and fulfilled in the order in which they are received.

ADD TO CART
