Extrude filament extremely fast, eliminate heat creep, and print up to 500°C with this amazing high-flow hotend! A necessity for any 3D printer upgrade.
The Mosquito® Magnum prints upwards of 30 mm^3/sec
A thermal insulator protects the extended melt zone from the effects of active cooling and radiative heat loss. It has a heat transmission rate as low as 3 W/m*K, meaning you can have ultimate confidence in the speed of your print, while at the same time maintaining the high resolution benefits achieved with the standard Mosquito® Hotend
The melt zone is extended proximally upwards to maintain a small form factor
Compatible with Rep Rap style nozzles which are characterized by their M6 x 1.0 threads, 7 mm threaded length, and 12.5 mm overall length
A multi extrusion setup with both high flow and high resolution optimized designs can be created without needing to purchase new nozzles or make carriage modifications to accommodate hotends of different sizes
Installation and assembly instructions available on our Documentation page

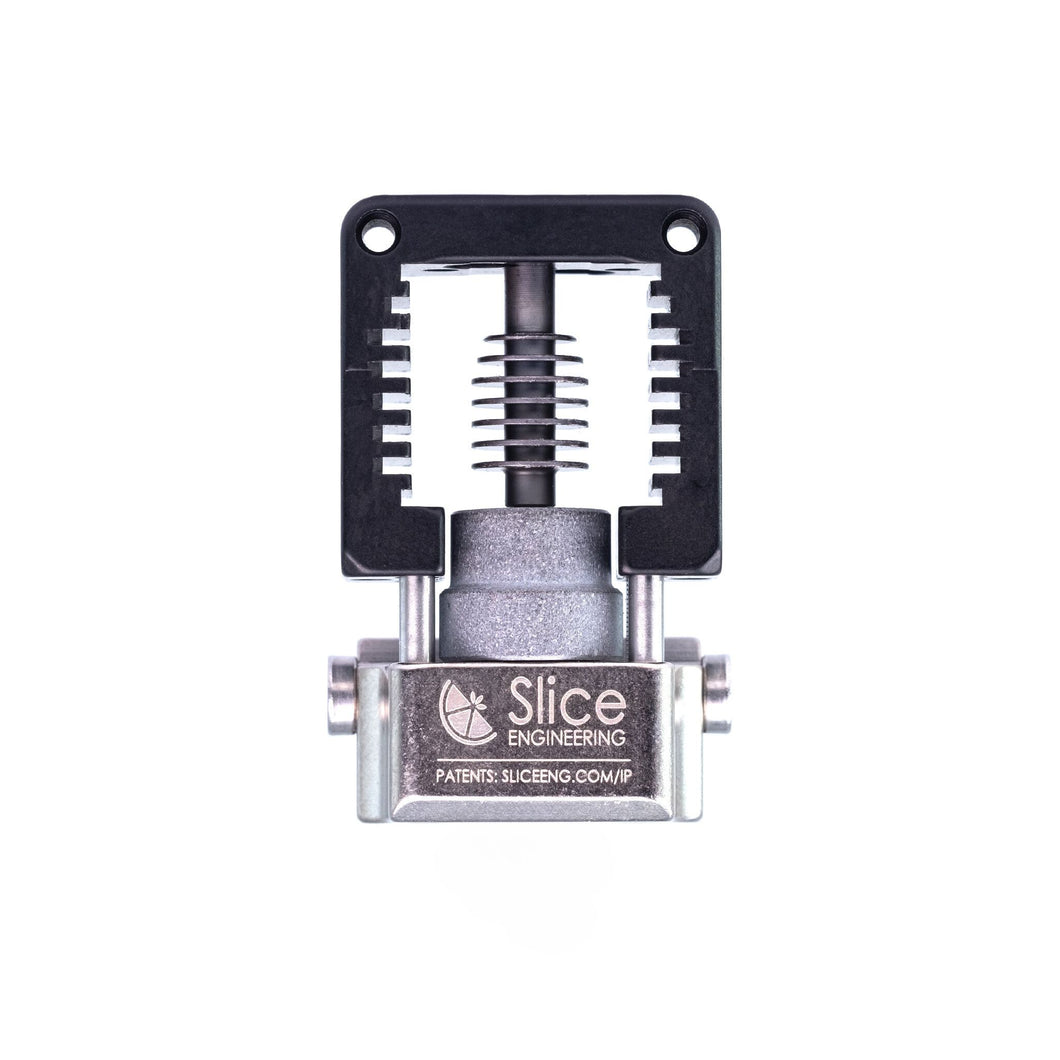

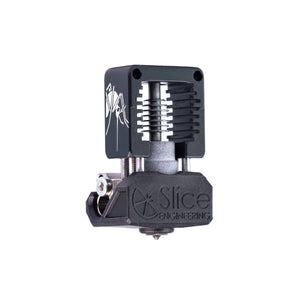

Mosquito® Magnum Hotend*
Mosquito® Magnum Mounting Hardware
Set of Mosquito® Magnum hex keys for assembly, disassembly, and mounting
Super tasty US-made gourmet lollipops
Have a Mosquito® Magnum Hotend with the retired Heat Break/Heat Sink? Press here to upgrade your Mosquito® Magnum Hotend to the latest version!
We highly recommend the use of Boron Nitride paste with the Mosquito® Magnum to provide good thermal conductivity between the hotend and heater/thermistor.
Whoever says “Sorry, I can’t do a GoT marathon with you on Saturday, I’m doing a big print,” clearly doesn’t have the Mosquito® Magnum hotend that finishes projects 20% faster than other high flow-rate hotends on the market.
Your 3D printer can deliver the high resolution prints and take on engineering-grade plastics that other desktop printers can’t come close to. With minimal layer lines, your vision is about to become reality. Fast.
The Mosquito® Magnum hotend has the same precision as our Mosquito® hotend, but with a flow rate that is significantly faster.
The Mosquito® Magnum is adaptable to virtually any printer, so by swapping one component, you have the high performance benefits of a printer worth thousands more. Since the Mosquito® (designed for beauty) and Mosquito® Magnum (designed for speed) are the same length, any combination of these hotends can be mounted to one carriage. So you can switch between high-flow and high-precision in the same print.
Oh yeah, and you can change the nozzle with one hand.
Unlock engineering-grade plastics up to 500 °C. That means you can print car parts, medical devices, and whatever else you can dream up, and you don’t have to buy an expensive printer to do the job.
How did we accomplish this?
By reimagining how a hotend is designed and structured from the ground up. The materials in each part of the Mosquito® Magnum have been hand selected to perform a specific task to optimize your printer’s performance. We went so far as using the same insulator materials that NASA uses on the space shuttle to protect the hotend’s extended melt zone.
Some might say it’s overkill.
But we say it’s necessary to create something truly excellent.
And it gives you a great anecdote for the next Rep Rap Festival.
Mosquito® Magnum is only available for 1.75 mm filament at this time.
Superior heat break performance
- The heat break conducts 85% less heat into the heat sink than a typical threaded heat break
- Steep temperature gradient at the heat break, and high tolerances along the filament path allow for better transmission of fine motor movements, resulting in beautiful, higher resolution prints
- Steep temperature gradient at the heat break reduces the likelihood of jamming
- Reduced heat transmission removes the need for a large heat sink
- Composite construction of the bimetallic heat break™ allows for the use of materials optimized for heat transfer in each section of the heat break
- Allows for hotend to be mounted with a printed, plastic adapter, without raising safety concerns
Increased structural rigidity
- The heat break has been separated from the structural components of the hotend, allowing for a heat break that is not load bearing, and can be very thin walled. This allows for a reliable, rigid exterior structure
- No components are prone to loosening at the mounting points
- Nozzles can be changed with one hand, without grasping the hot block
- In the case of a severe crash, an entirely new hotend is not necessary, parts can be easily swapped out
Larger temperature operating range
- Specially-engineered high temperature copper alloy in the hot block will not soften at high temperatures in excess of 550C.
- Threads in the hot block will not deform at high temps, allowing removal of nozzles even after multiple high temp heat cycles
- Nickel plating on the hot block reduces radiative heat loss and prevents galling of threads
Modular/adaptable to almost any FFF/FDM printer
- Compact, flat, ambidextrous form factor
- 5 different hole mounting patterns to allow for adaptation to virtually any printer
- Printable adapters can be created to diversify mounting options
Ideal for multiple extrusion systems
- Small form factor and light mass allows for back-to-back mounting with small nozzle-nozzle distance
- Small mass allows for more rapid motion
- Less reinforcement needed for the motors, belts, and drives in the motion system
