Anycubic Kobra Upgrade Bundle
- Regular price
- $228.98
- Sale price
- $214.99
- Unit price
- per
30-Day Performance Promise
Our Promise To You
If you're not seeing the results we've promised within 30 days, you can send the product back for a full refund, replacement, or repair. Exclusions apply. See terms for full details.
Free Returns & Shipping (Over $50)
30-Day Money Back Guarantee
Free shipping over $50 is available for US customers only. See terms for full details.
Unleash the Power of Your Anycubic Kobra 3D Printer
Upgrade your Anycubic Kobra, Kobra Max, or Kobra Plus 3D printer with the Kobra Upgrade Bundle to unlock enhanced printing capabilities. Available in multiple hotend options – Copperhead, Mosquito, Mosquito Magnum, and Mosquito Magnum+ – this bundle transforms your printer into a direct-drive powerhouse, delivering faster print speeds, improved extrusion, and expanded filament compatibility.
Bimetallic Heat Break Technology
At the heart of our hotends lies our bimetallic heat break technology which eliminates heat creep and jamming, improves print resolution and allows for shorter retractions. Our hotends utilize this technology to offer precise temperature control and exceptional thermal efficiency, enabling you to print with a wide range of filaments.
Unparalleled Extrusion Performance
The Bondtech LGX, LGX Lite V2, and LGX Lite PRO are powerful extrusion systems that significantly improve extrusion through large drive gears and dual drive technology. These eXtruders ensure precise, reliable, and faster 3D printing, even with rigid and flexible materials, while enabling better retraction performance for quicker print times.
Please Note:
- If adding the Mosquito Magnum+® Hotend variant, you are acknowledging the risks shown here.
- Kobra 3D Printer

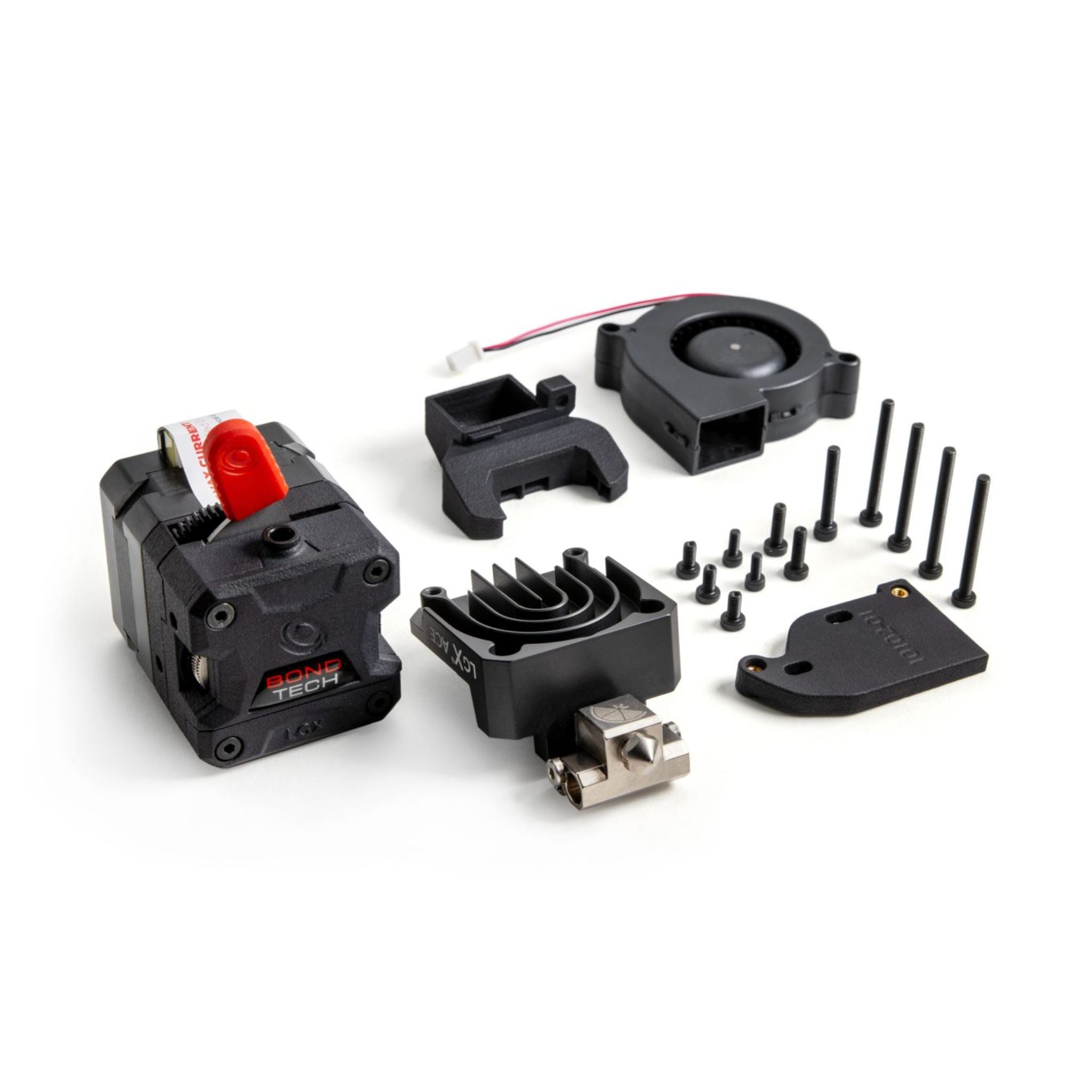

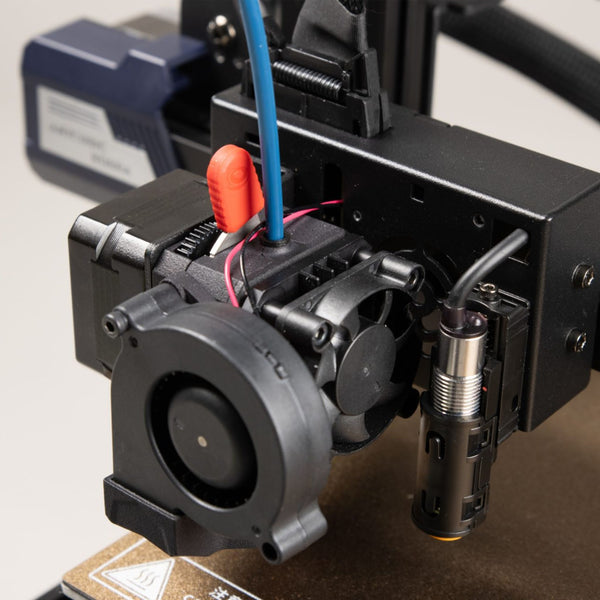

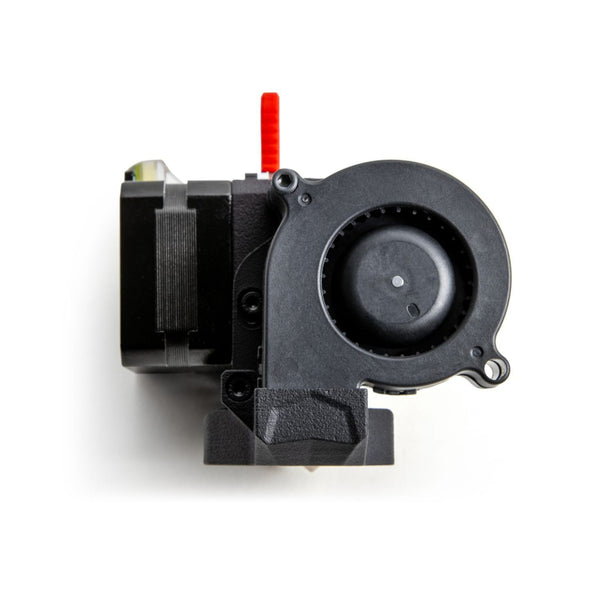

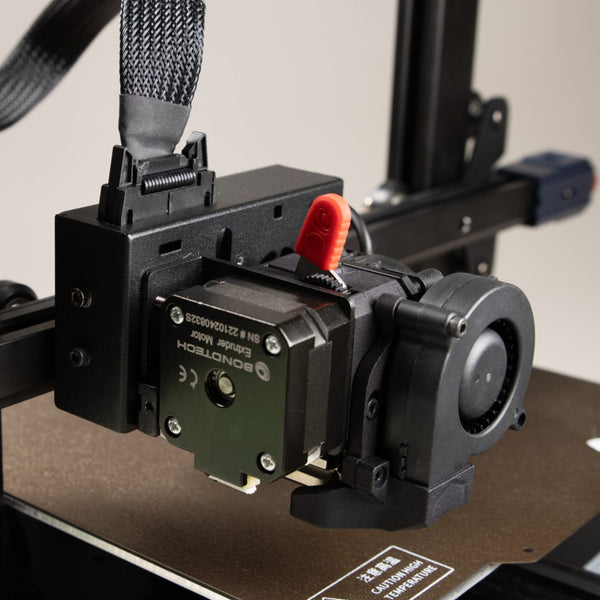

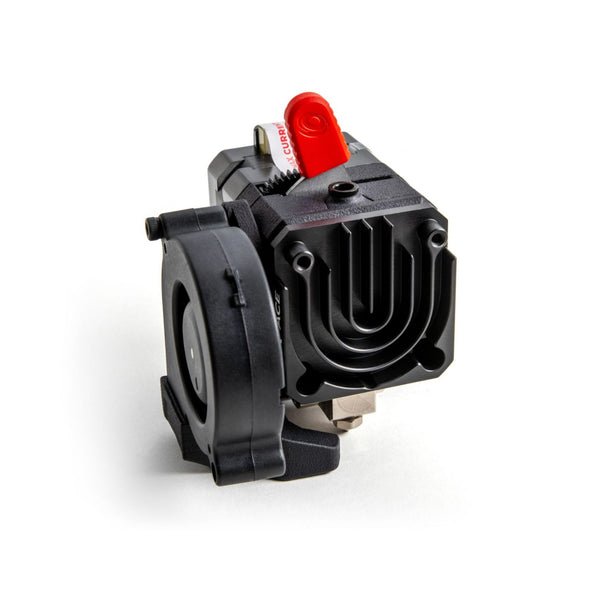

- LGX ACE Copperhead Hotend & LGX eXtruder : Perfect for those seeking enhanced printing capabilities

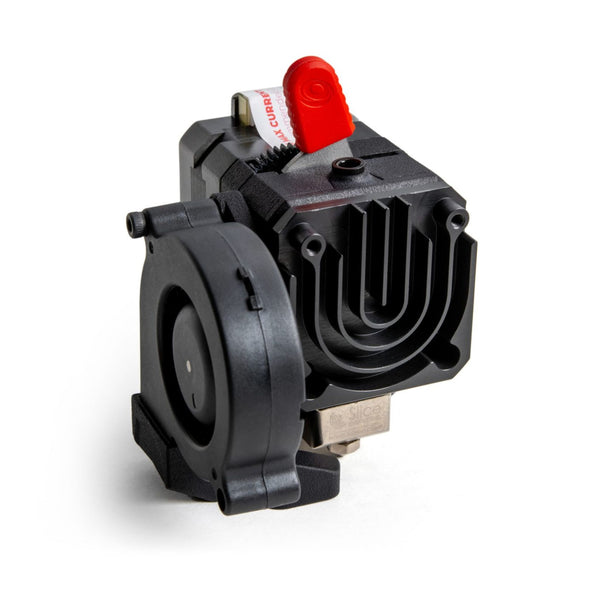

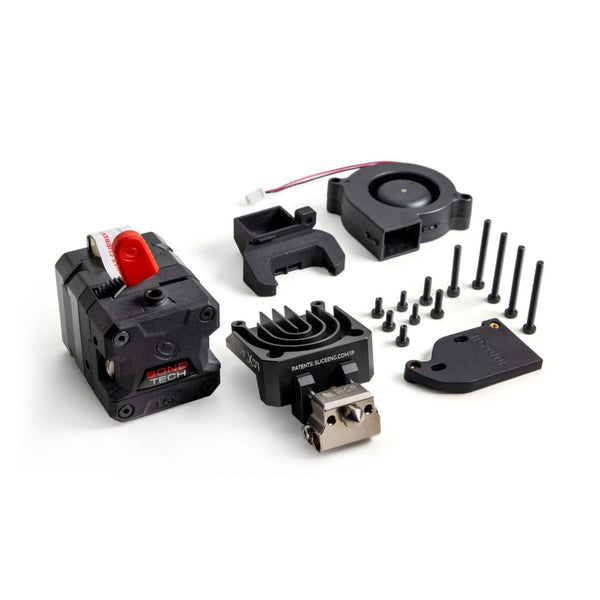

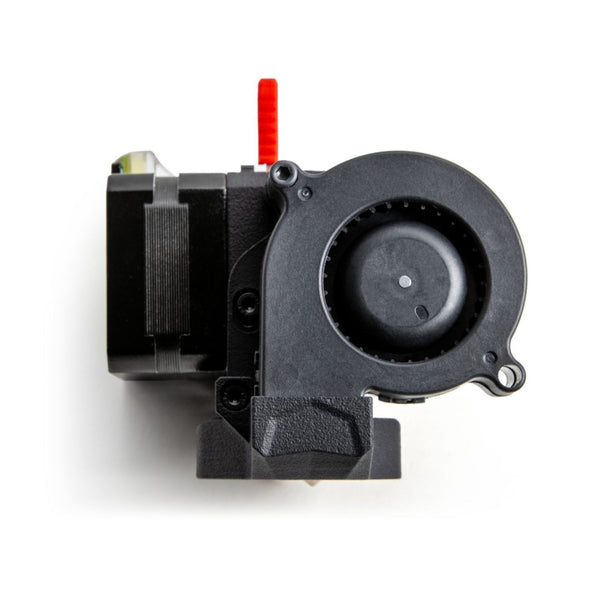

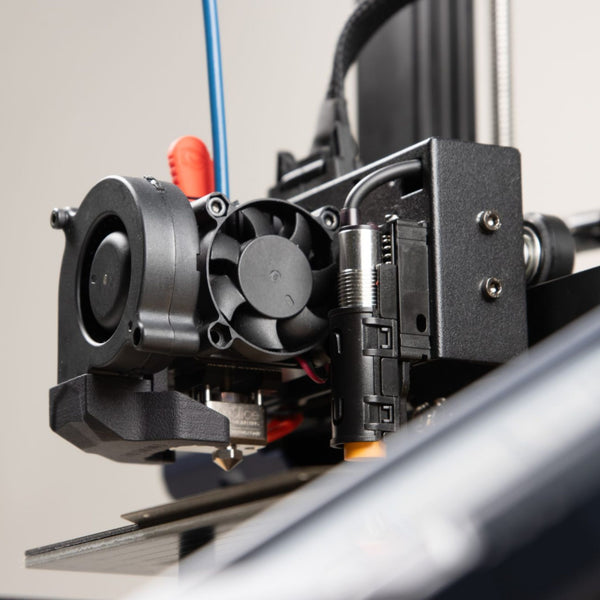

- LGX ACE Mosquito Hotend & LGX eXtruder : Perfect for those seeking enhanced printing capabilities and a One-Handed Nozzle Change™ with a Nozzle Torque Wrench (not included)
- Kobra Max/Plus 3D Printers

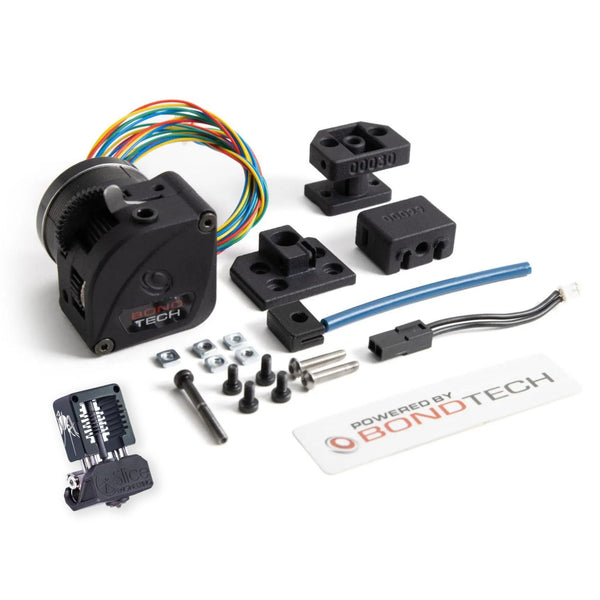

- Mosquito Hotend & LGX Lite V2 : Perfect for those seeking enhanced printing capabilities
- Mosquito Magnum & LGX Lite V2: Offers an extended melt zone on the hotend for faster printing, ideal for larger-scale projects or tight deadlines.

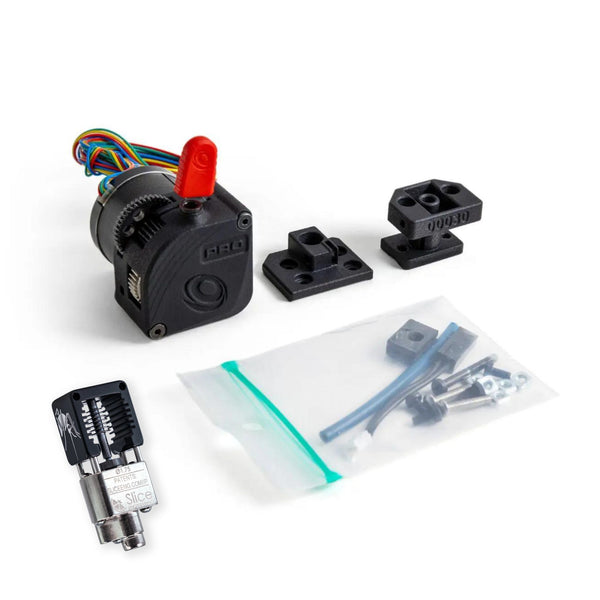

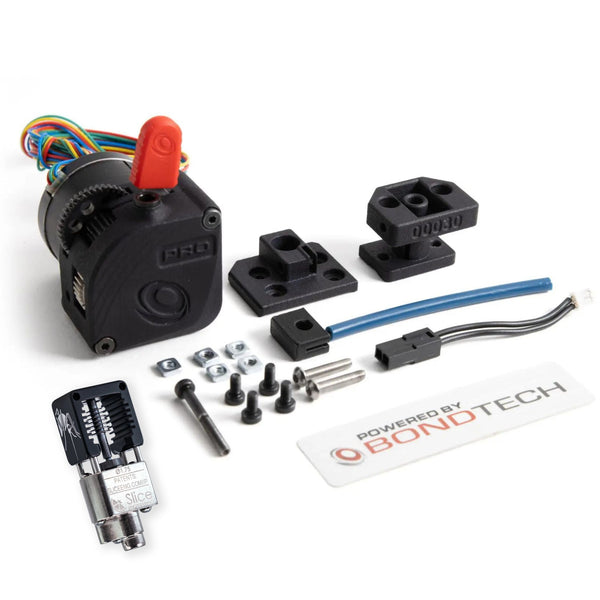

- Mosquito Magnum+ & LGX Lite PRO: The ultimate high-flow upgrade, designed for professional and industrial 3D printing applications.
- If choosing this upgrade option, the following tools are not included and will be needed to assemble the hotend:
- 3 Nm Torque Wrench with Deep Well 9 mm Socket
- A standard 9 mm wrench can be used
- 0.15 Nm Torque Wrench with 1.5 mm hex bit
- A standard 1.5 mm hex key which is included can be used
- 1.5 Nm Torque Wrench with 6 mm hex socket
- Vise
- 3 Nm Torque Wrench with Deep Well 9 mm Socket
For more information, see our assembly instructions here.
- If choosing this upgrade option, the following tools are not included and will be needed to assemble the hotend:

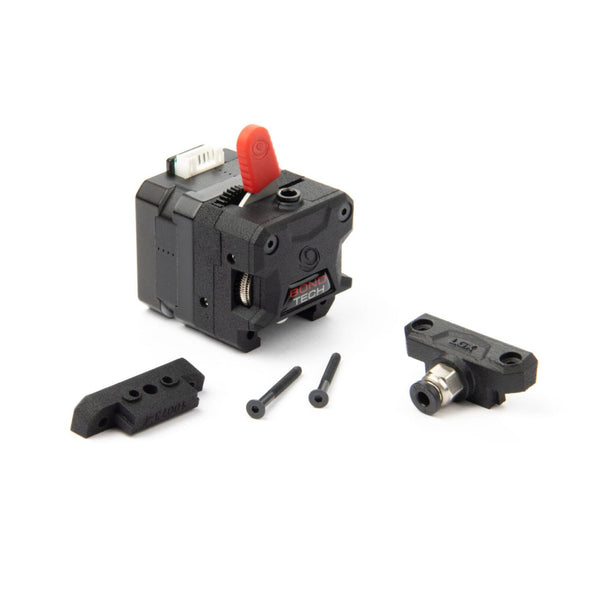

- Kobra
- LGX Extruder
- LGX Feeder (1.75 mm)
- Bowden Interface Plug (with threaded metal push-fit)
- 30 mm PTFE Tube for the Direct Drive Interface Plug
- 2 mm Hex Key (recommended tool)
- 3x M3x30 mm Low Head Screws
- Product Line Information Brochure
- Powered By Bondtech Sticker
- Custom Nema17 25 mm Pancake Stepper Motor
- Direct Drive Interface Plug (for Slice Engineering® Hotends)
- 4x M3x18 mm Stud (with 5mm Hex & M3x4 threads)
- These studs are used to replace the 4 screws of the stepper motor for additional mounting points. Make sure not to use too much torque to tighten the studs as the stepper motor threads are delicate & made of aluminum. It is recommended to use finger force only.
- LGX ACE Hotend (Copperhead/Mosquito)
- LGX ACE Accessories for Anycubic Kobra
- 1x 10102-01 LGX Anycubic Kobra Fan Mount
- 1x 10102-02 LGX Anycubic Kobra Fan Shroud
- 1x 14069 5015 24v Radial Fan
- 1x 15191 LGX ACE Hardware for Anycubic Kobra
- Kobra Max/Plus
- Selected Hotend
- Mosquito Hotend - Kit
- Mosquito Hotend
- GammaMaster® Nozzle - 0.4 mm
- Mosquito Silicone Boot
- Boron Nitride Paste - 1 cc
- Hotend Mounting Hardware
- Hotend Wrench Set
- Mosquito Magnum Hotend - Kit
- Mosquito Magnum Hotend*
- GammaMaster® Nozzle - 0.4 mm
- Mosquito Silicone Boot
- Boron Nitride Paste - 1 cc
- Hotend Mounting Hardware
- Hotend Wrench Set
- Mosquito Magnum+® Air-Cooled Hotend (1.75 mm) - Unassembled Bundle / No Heater(s) / No Sensor(s)
- Mosquito Magnum+ Hot Block
- Mosquito Heat Break
- Mosquito Magnum+ Heat Sink
- Hot Block Hardware
- Boron Nitride Thermal Paste
- Hotend Mounting Hardware
- Hotend Wrench Set
- Optional Heater(s)
- Optional Sensor(s)
- Slice Engineering Sticker
- LGX Lite Extruder
- LGX Lite Extruder (V2 or PRO)
- 1x Nema14 Round pancake stepper motor (20 mm for V2/22 mm for PRO);
- 1m long lead cable
- with JST-XH 4-pin connector
- 1x 2mm Hex Key (recommended tool)
- 1x Powered By Bondtech sticker
- 1x Push-fit collar
- 1x 30mm PTFE tube to use in the PTFE Tube Adapter
- 8x M3 square nuts for reinforcing mounting holes
- 1x LGX Lite Mount (if ordering the extruder with a hotend)
- LGX Lite Accessories for Anycubic Vyper / Kobra Max / Kobra Plus
- 1x Anycubic Vyper Mosquito Adapter
- 1x Anycubic Vyper SE Adapter (to use with Slice Engineering hotends)
- 1x Anycubic Vyper Stock Hotend Adapter
- 1x LGX Lite Arrow Extruder mount
- 1x LGX Lite AnyCubic Vyper Hardware Accessories
- 1x LGX Lite AnyCubic Vyper Fan Cable
- 1x Creality Capricorn cutting fixture
- Hotend Cooling Fan - 24V
Free shipping over $50 is available for US customers only. See terms for full details.
Technical Specifications
| Cooling | Air |
| Filament Diameter | 1.75 mm |
| Temperature Rating | 260°C* |
| Maximum Flow Rate Capacity | See Hotend Comparison section below |
| Nozzle Compatibility | M6 x 1.0 (7 mm thread length) |
| Maximum Heating Power | 50 W (24 V) |
| Temperature Sensor | Stock Anycubic Sensor |
* Temperature Limitations: Although our hotends are rated to 450°C - 500°C, Anycubic Kobra Printers are limited to 260°C by their firmware. Unfortunately, there is no workaround to this at this time.
Hotend Comparisons
| Copperhead Hotend® | The Original Mosquito® | Mosquito® Magnum | Mosquito Magnum+® | |
| Max Flow Rate Capacity | 33 mm3/s (147 g/hr) | 35 mm3/s (156 g/hr) | 40 mm3/s (179 g/hr) | 90 mm3/s (402 g/hr) |
| Nozzle Orifice | 0.2 – 0.8 mm | 0.2 – 0.8 mm | 0.4 – 1.2 mm | 0.4 – 1.8 mm |
| Mass* | 21.2 - 39.1 g | 37 g | 41 g | 73 g |
| Overall Height* | 27 - 59 mm | 41 mm | 41 mm | 60 mm |
| Max Power | 50 W | 50 W | 50 W | 100 W |
| Filament Size | 1.75 mm | 1.75 or 2.85 mm | 1.75 mm | 1.75 or 2.85 mm |
| One-Handed Nozzle Change™ | No | Yes | Yes | Yes |
* Air-Cooled Version (1.75 mm); Mass/height includes the heat sink, heat break, & hot block
Installation Videos
| Kobra - LGX ACE (Copperhead/Mosquito) |
| Kobra Max/Plus - LGX Lite V2 (Mosquito/Magnum)* |
| Kobra Max/Plus - LGX Lite PRO (Magnum+)* |
*Although these guides talk about the Vyper printer, they also work for the Kobra Max/Plus printers. Also, in the videos, there is an option to install a bowden coupler to hold the other end of the PTFE tube where the previous stock extruder was.
- If you'd like to go this route, you can order those parts here and here. When ordering the metal push-fit connector, make sure to choose the 4 mm option.
- If you don't want to go this route, you can leave your stock extruder where it was and just remove the internal gears from the stepper motor so the filament runs straight through the extruder housing.
