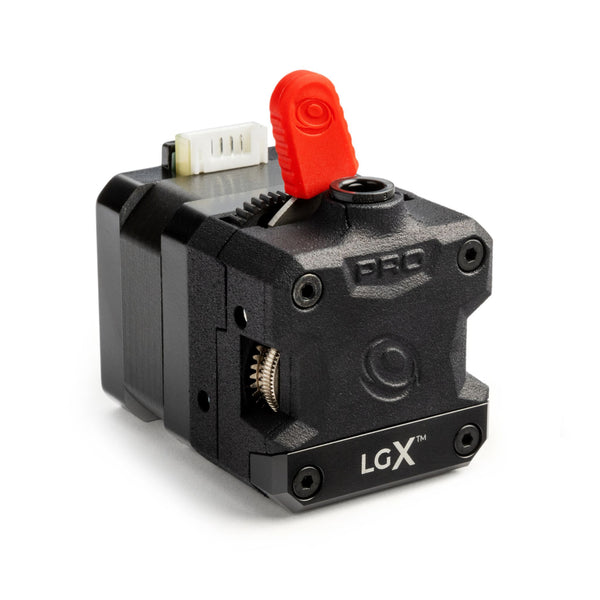

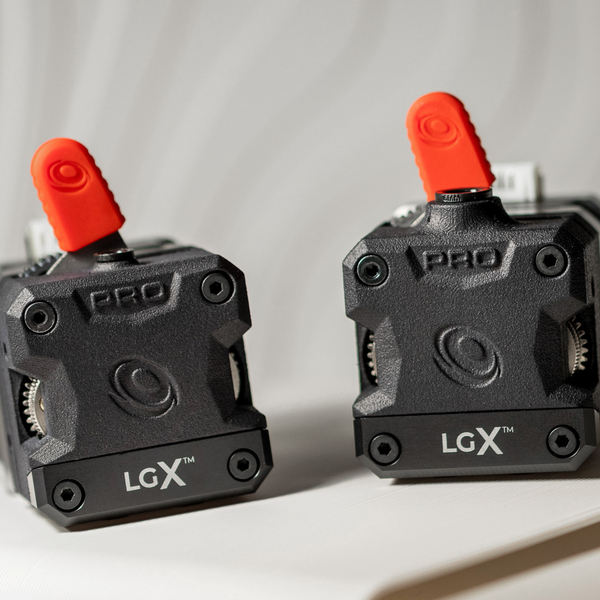

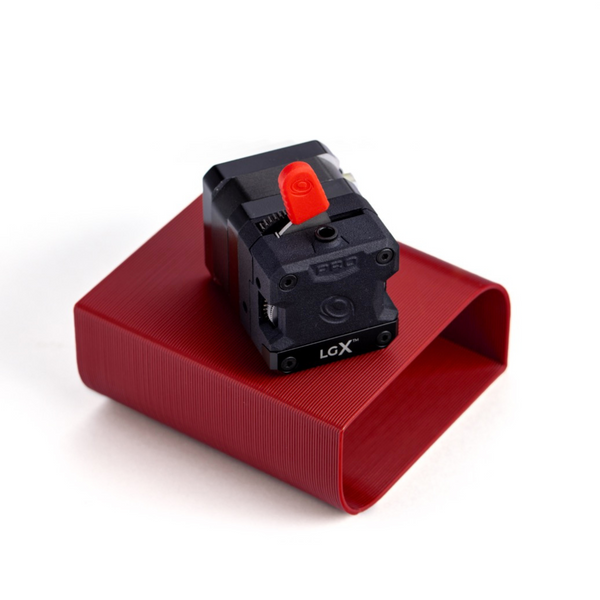

Bondtech LGX PRO - 2.85 mm
Bondtech LGX PRO - 2.85 mm

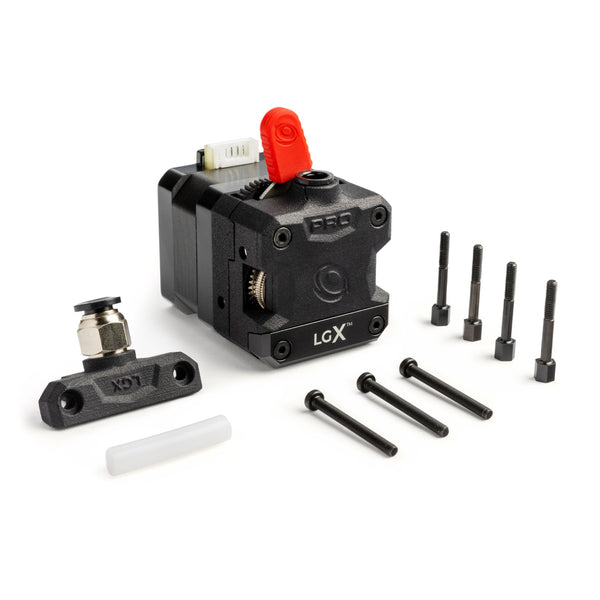

Bondtech LGX PRO - 2.85 mm (with screws and bowden adapter)

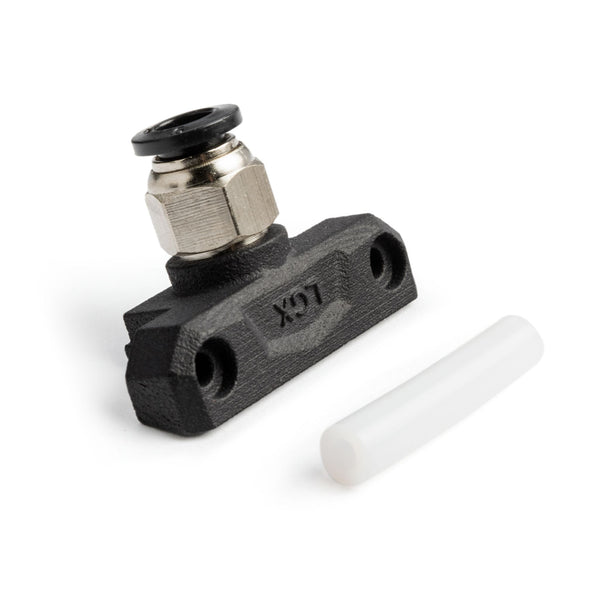

Bondtech LGX PRO 2.85 mm Bowden Adapter

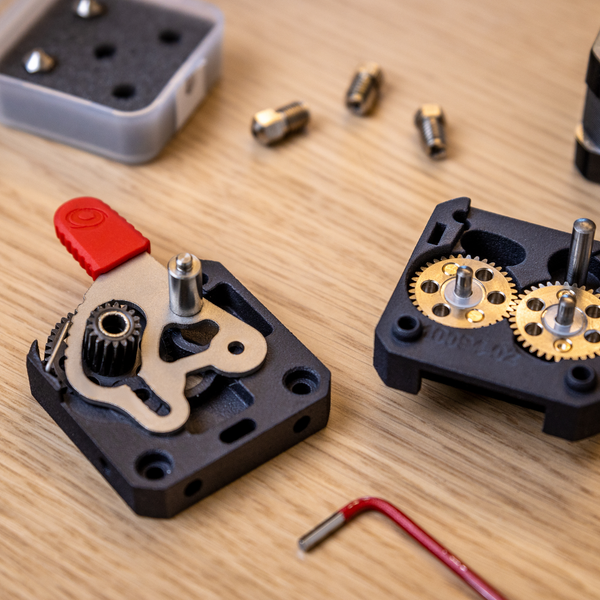

Bondtech LGX PRO - 2.85 mm Gears
Bondtech LGX PRO - 2.85 mm
Bondtech LGX PRO - 2.85 mm

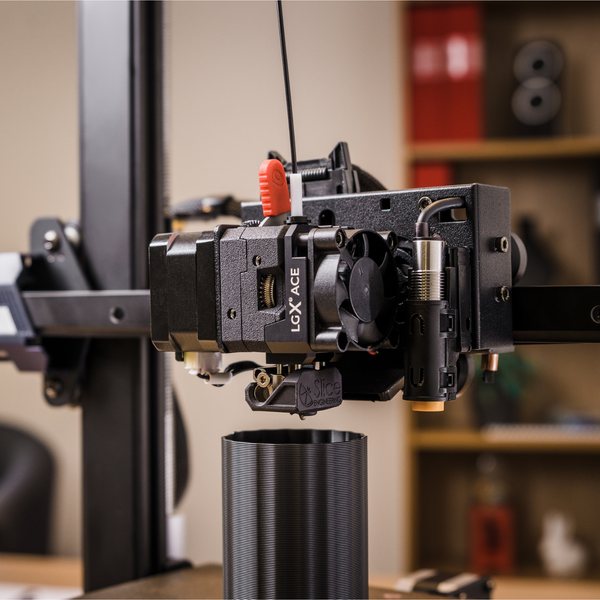

Bondtech LGX PRO - 2.85 mm with LGX ACE

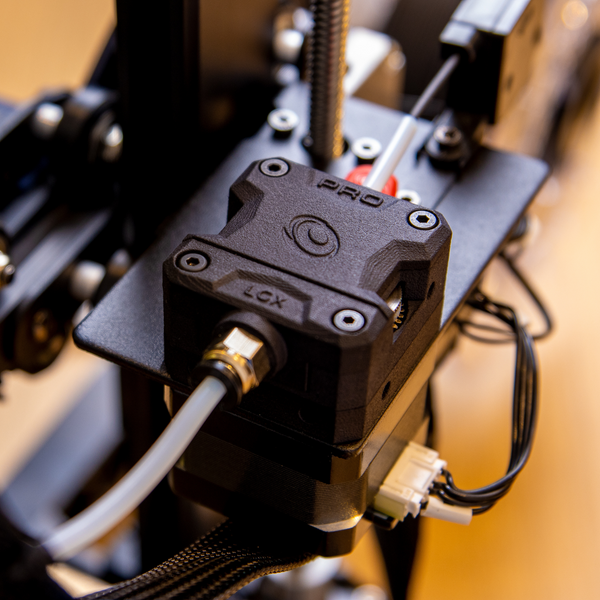

Bondtech LGX PRO - 2.85 mm (Bowden)
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm (with screws and bowden adapter)
  • Load image into Gallery viewer, Bondtech LGX PRO 2.85 mm Bowden Adapter
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm Gears
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm with LGX ACE
  • Load image into Gallery viewer, Bondtech LGX PRO - 2.85 mm (Bowden)

Bondtech LGX PRO - 2.85 mm

Write a review
| Ask a question
Regular price
$149.99
Sale price
$149.99
Unit price
per
This LGX PRO extruder is an evolution of the LGX Large Gears eXtruder featuring a stronger stepper motor, full steel drive train, and 2.85 mm filament path. It's a robust extruder made for industrial applications.

Looking for 1.75 mm compatibility? Click here.

11 in Stock

+

Frequently bought with:

Additional Features and Benefits

  • Stronger 30 mm stepper motor
  • Larger drive wheels for increased filament grip
  • Filament pre-tension lever for repeated results
  • Multi-function interface socket for tool or application quick swap
  • Drive wheels’ maintenance windows for easy cleaning
  • Compact, light & symmetric design for increased performance & compatibility
  • Multiple mounting hole patterns for easy and flexible setup;
  • Full hardened steel drive train
  • Tough PA12 GF housing for enhanced mechanical and thermal resistance
  • Supports longer hotends with the extra aluminum interface plug

LGX PRO Extruder (2.85 mm) Includes:

  • LGX PRO 2.85 mm Feeder
  • Custom Nema17 30 mm Pancake Stepper Motor
  • Bowden Interface Plug (with threaded metal push-fit)
  • Aluminum Interface Plug
  • 2 mm Hex Key (recommended tool)
  • Product Line Information Brochure
  • Powered By Bondtech sticker
  • 3x M3x30 mm Low Head Screws
  • 4x M3x23 mm Stud (with 5 mm Hex & M3x4 threads)*
  • 30 mm PTFE Tube for the Direct Drive Interface Plug

* These studs are used to replace the 4 screws of the stepper motor for additional mounting points. Make sure not to use too much torque to tighten the studs as the stepper motor threads are delicate & made of aluminum. It is recommended to use finger force only.

IMPORTANT: Before installing the LGX PRO, please read the LGX Wiring Instructions in the Downloads section below. Not all printers are ready for a direct connection with the LGX and may need to be modified.

Section
Drop element here

LGX vs. LGX PRO

LGX LGX PRO
Dual Drive Gears
Motor Gear Hardened Steel Hardened Steel
Main Gear Plastic Hardened Steel
Filament Compatibility 1.75 mm 1.75 mm & 2.85 mm
Housing Material PA-12 PA-12 GF
Max Working Temperature 70°C 100°C
