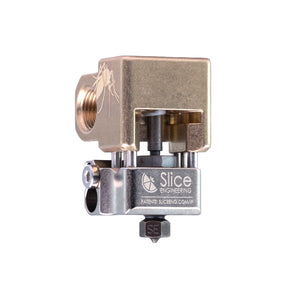

Mosquito® Liquid (No Eisele Fittings)
Mosquito® Liquid (6 mm OD Eisele Fittings)
Mosquito® Liquid (8 mm OD Eisele Fittings)

Mosquito® Liquid

1 Review
| 6 answered questions
Regular price
$189.99
Sale price
$189.99
Unit price
per

Behold the Mosquito® Liquid - it uses the same patented technology found in the standard, air-cooled Mosquito® hotend, but optimized for liquid cooling in heated enclosures. Like all of our hotends, Mosquito® Liquid is completely Made in the USA, out of top end materials. The liquid cooling block is precision machined out of a corrosion resistant bronze alloy that allows for use with most commercially available coolants. Liquid also features our latest Bimetallic Heat Break™ - the first version to be totally conductively cooled. The hotend is available with or without liquid fittings.

We can't quite talk about the specifics yet, but Mosquito® Liquid will be featured on several upcoming industrial 3D printers optimized for printing high temperature plastics such as PPSU, PEEK and PEKK.
Heat Break Diagram

Superior Heat Break Performance

Eliminate Heat Creep and reduce jamming

Improve printing resolution

Improve capability with high temp materials

Lower retraction improves printing speed

Rigid Structure

One-handed Nozzle Change™ allows for the simplest nozzle change procedure of any hotend

A “roll cage” design protects the delicate heat break from crashes and other abuse

Thermistor air gap detail

Copper Hot Block

Rated to 500 °C for even the most demanding tasks

Print every available filament, from basic PLAs to custom medical-grade PAEKs

Durable nickel-based coating reduces plastic buildup

Modular System

Designed like a Lego kit with interchangeable parts

Swap a few parts to upgrade to any of the other Mosquito™ hotends, including Magnum™

Ambidextrous design

Exploded Mosquito diagram

Adaptable

Four different direct mounting options, numerous machined adapters, innumerable adapter possibilities to mount to any 3D printer

Ideal for multi extrusion setups - mount two extruders back-to-back with a separation distance as small as 15 mm

Precise, torque-resistant mounting interface

Lightweight

Low mass on the carriage for maximum X-Y acceleration

Mosquito front top view

Technical Specifications

Mosquito draft graphic
Mosquito top front right
Mosquito mounting hole layout
Mosquito top back left

Includes:
- Mosquito® Liquid - 1.75 (Fully assembled)
- Mosquito® Liquid Mounting Hardware
- Set of Mosquito® Liquid hex keys for assembly, disassembly, and mounting
- Super tasty US-made gourmet lollipops
- Eisele Fittings (if selected)

Mass Specifications:
- Hotend mass: 74 grams
- Hotend mass w/ 6 mm OD Eisele Straight Fittings: 99 grams
- Hotend mass w/ 8 mm OD Eisele Straight Fittings: 108 grams
- Hotend mass w/ 6 mm OD Eisele Elbow Fittings: 122 grams
- Hotend mass w/ 8 mm OD Eisele Elbow Fittings: 158 grams

General Notes:
1) If using Eisele Fittings, the compression side should be hand tightened and the threaded side should be torqued to a maximum of 9 Nm for a proper seal.
2) If using these compression fittings with a tube material that has a Durometer of 95A or softer, a tube support will be necessary in order to properly secure the tube within the fitting. An example of a tube support for the 6 mm fittings can be found here and a tube support for the 8 mm fittings can be found here.
3) If using a tubing softer than 95A, we tested and recommend Viton® fluoroelastomer tubing with a Durometer of 75A. Here is a link to the 6 mm OD tubing and here is a link to the 8 mm OD tubing.
4) The Mosquito® Liquid is compatible with Rep Rap style nozzles which are characterized by their M6 x 1.0 threads, 7 mm threaded length, and 12.5 mm overall length
